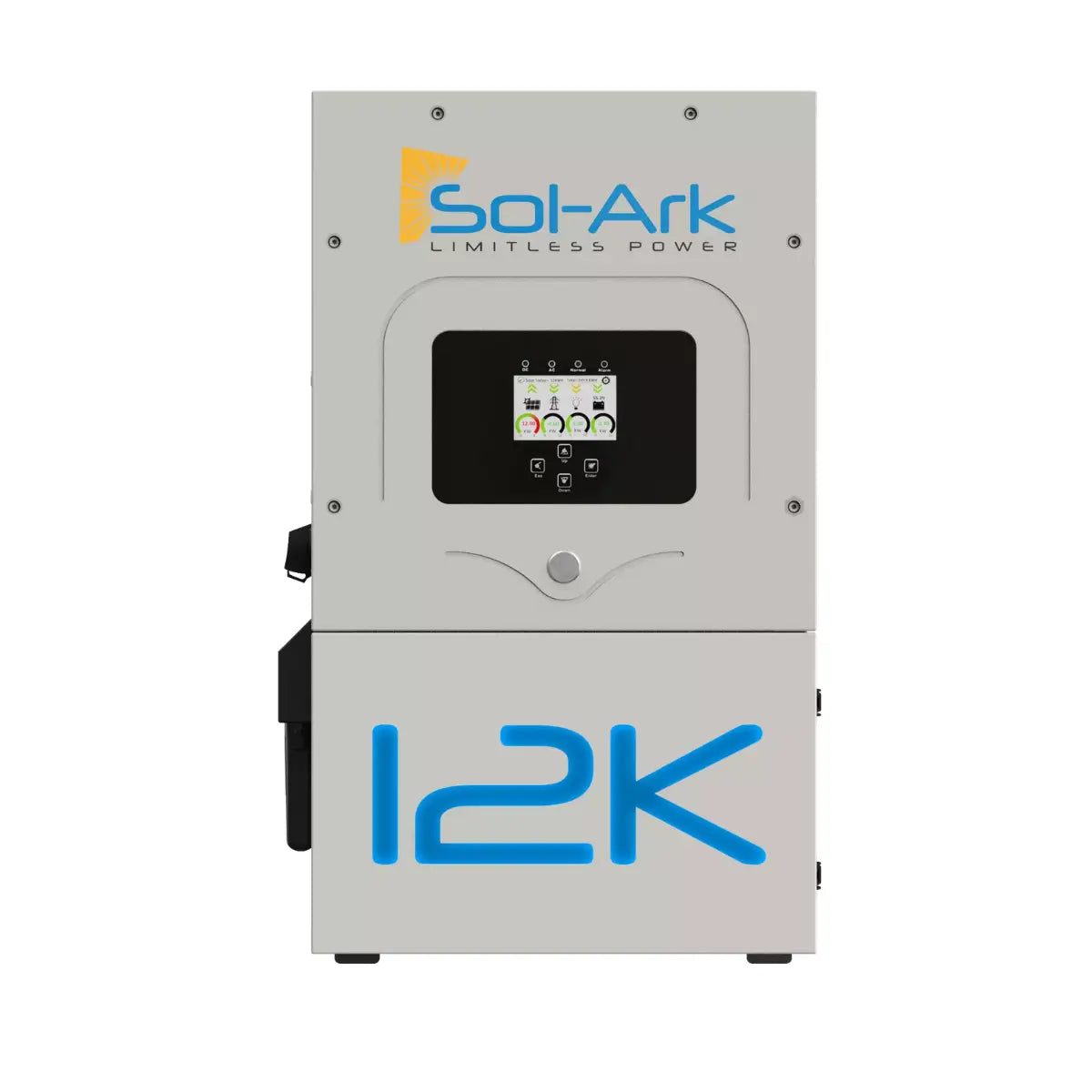

Sol-Ark 12K EMP Hardened Hybrid Inverter – Power, Protection & Simplicity
The Sol-Ark 12K EMP Hardened Hybrid Inverter is a cutting-edge all-in-one solar inverter and charger built for serious energy independence. This pre-wired system supports 120V/240V/208V output, includes dual MPPT charge controllers, and comes fully EMP-protected — shielding your power system from electromagnetic pulses, solar flares, lightning, and more.
Designed for grid-tied, off-grid, or hybrid systems, the Sol-Ark 12K is ideal for homeowners, preppers, and installers seeking a reliable inverter that simplifies solar + battery installation. With integrated WiFi, remote monitoring, and smart load management, you can manage your system efficiently and securely, backed by a robust 10-year warranty.
Key Benefits of the Sol-Ark 12K Inverter
- EMP Hardened: Protects your inverter, solar array, and connected appliances from EMPs & surges.
- All-in-One Convenience: Charge controllers, monitoring, AC/DC breakers, and disconnects included.
- Battery Agnostic: Works with 48V lithium, AGM, or lead-acid batteries.
- Efficient & Affordable: Save over 50% compared to similar hybrid systems like Tesla Powerwall.
- Smart Load Support: Power critical loads or shift energy use based on grid pricing (TOU).
Power Modes & Applications
- Grid-Tied: Sell excess solar back to the grid and reduce utility bills.
- Meter Zero: Eliminate your electricity bill using solar + battery storage.
- Time-of-Use (TOU): Shift to battery or solar power during peak pricing hours.
- Off-Grid: Run your home independently with or without batteries.
- Battery Backup: Keep essential systems running during power outages.
- AC Coupling: Easily retrofit into existing grid-tied systems.
Technical Specifications
- Power Output: 9000W continuous / 12,000W surge
- Battery Voltage: 48V
- Charge Controllers: Dual MPPT, 6500W per input (13kW total)
- Output Voltage: 120V/240V/208V
- Built-in Features: EMP suppression, WiFi, breakers, rapid shutdown, arc fault & ground fault protection
- Weight: 74 lbs
- Warranty: 10 Years (USA-based support)
Ready to secure your energy independence with EMP protection?
Specifications & Dimension
Sol-Ark 12K-P Inverter
General:
Model: Sol-Ark-12K-P
SKU: 12K-2P
Design: Transformerless DC
Stackable: Up to 9 in parallel
Standard Warranty: 10 Years
Input Data (PV):
Max. Allowed PV Power (STC): 13,000W
Rated MPPT Operating Voltage Range: 175 – 425V
MPPT Voltage Range: 150 – 500V
Startup Voltage: 125V
Max. DC Input Voltage: 500V
Max. Operating Input Current per MPPT: 20A (self-limiting)
No. of MPP Trackers: 2
No. of PV Strings per MPPT: 2
Max. AC Coupled Input: 9,600W
Output Data (AC):
Nominal AC Voltage: 120/240V, 120/208V, 220V
Grid Frequency: 50 / 60Hz
Real Power (max continuous): 9,000W
Max. Output Current: 37.5A
Peak Apparent Power (10s, off-grid): 16,000VA @ 240V
Peak Apparent Power (100ms, off-grid): 25,000VA @ 240V
Max. Output Fault Current (100ms): 104A
Max. Grid Passthrough Current: 63A
Power Factor Output Range: +/- 0.9 adjustable
Backup Transfer Time: 4ms
CEC Efficiency: 96.5%
Max Efficiency: 97.5%
Battery Input (DC):
Supported Battery Technologies: Lithium / Lead Acid
Nominal DC Voltage: 48V
Operating Voltage Range: 43 – 63V
Battery Capacity Range: 50 – 9900Ah
Max. Battery Charge / Discharge Current: 185A
Charging Controller: 3-Stage with Equalization
Grid to Battery Charging Efficiency: 96.0%
External Battery Temperature Sensor (BTS): Included
Automatic Generator Start (AGS): 2 Wire Start - Integrated
BMS Communication: CANBus & RS485 MODBUS
Physical:
Dimensions (HxWxD): 750 x 450 x 254 mm (29.5 x 17.7 x 10 in)
Weight: 35.4 kg / 78 lb
Enclosure: IP65 / NEMA 3R
Ambient Temperature Range: -25°C to 55°C (derating > 45°C)
Noise Level: < 30 dB @ 25°C
Idle Consumption - No Load: 60W
Communication and Monitoring:
Wi-Fi & LAN: Hardware Included
Certifications & Protection:
Certifications: UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H
PV DC Disconnect Switch: NEC 240.15 - Integrated
Ground Fault Detection: NEC 690.5 - Integrated
PV Rapid Shutdown Control: NEC 690.12 - Integrated
PV Arc Fault Detection: NEC 690.11 - Integrated
PV Input Lightning Protection: Integrated
PV String Input Reverse Polarity Protection: Integrated
AC Output Breaker: 63A - Integrated
Battery Breaker / Disconnect: 250A - Integrated
Surge Protection: DC Type II / AC Type II
What's in the Box?
- Sol-Ark 12K EMP-Hardened Hybrid Inverter (pre-wired)
- EMP Suppression Kit for inverter, appliances, and solar
- Built-in Dual 500V Charge Controllers
- Built-in WiFi and Monitoring Display
- AC/DC Disconnects and Breakers
- Battery & PV Disconnects
- Rapid Shutdown Components
- Current Sensors
- Mounting Hardware and Manual
Guides & More
Shipping Policy
- Free & Fast Shipping
We offer free shipping on most Sol-Ark Hybrid Inverters orders across the lower 48 states, using the most reliable freight partners. Orders typically ship within 5 business days, with tracking provided within 24 hours of dispatch. - Tracking & Delivery Scheduling
You’ll receive an order confirmation email immediately after placing your order. Tracking details are usually shared within 3–5 business days. Please review your shipping address carefully—corrections after shipment may incur a fee. - Important Shipping Notes
Ensure your location can accommodate freight deliveries. Additional charges may apply for access-restricted areas, remote locations, or deliveries requiring special transport (e.g., ferry or plane).
See our full Shipping Policy here
Return Policy
- Hassle-Free Returns
We offer a 30-day return window from the date you receive your item. Items must be unused, in original packaging, and accompanied by proof of purchase. Some items may incur a 15–25% restocking fee, especially larger freight-shipped products. Cancellations made before shipping will incur a 3-5% processing fee. - Damaged or Special Orders
Please report any damages within 24 hours of delivery. Installed or opened items may not be returnable. Select brands such as Victron and Pytes may be non-returnable based on manufacturer policies.
See our full Return Policy here
What Sets it Apart
-
EMP Hardened Design
-
Protects against EMPs, solar flares, lightning, and cyber threats.
-
All-in-One System
-
Pre-wired with charge controllers, load center, breakers, and monitoring.
-
Grid & Off-Grid Ready
-
Supports battery backup, grid-tied, AC-coupling, and off-grid installations.
See it in Action
Have a Question? We Have Answers
Can the Sol-Ark 12K be used off-grid?
-
Yes, it supports off-grid use with or without batteries, and integrates seamlessly.
Is this inverter EMP protected?
-
Yes, this version includes Sol-Ark’s EMP suppression system exceeding military standards.
What types of batteries work with the Sol-Ark 12K?
-
It is battery-agnostic and works with 48V lithium, lead-acid, and other 48V batteries.
What is the warranty on Hybrid Inverters?
Warranty for product varies based on the brand and the product. For some of the warranties, https://generationecostore.com/pages/warranty view OEM warranty policy. For any questions, please reach out to us at hello@generationecostore.com
Can I return the Hybrid Inverters if I'm not satisfied?
We offer a 30-day return window from the date you receive your item. To be eligible for a return, the item must be unused, in its original packaging, and include proof of purchase.
