Description

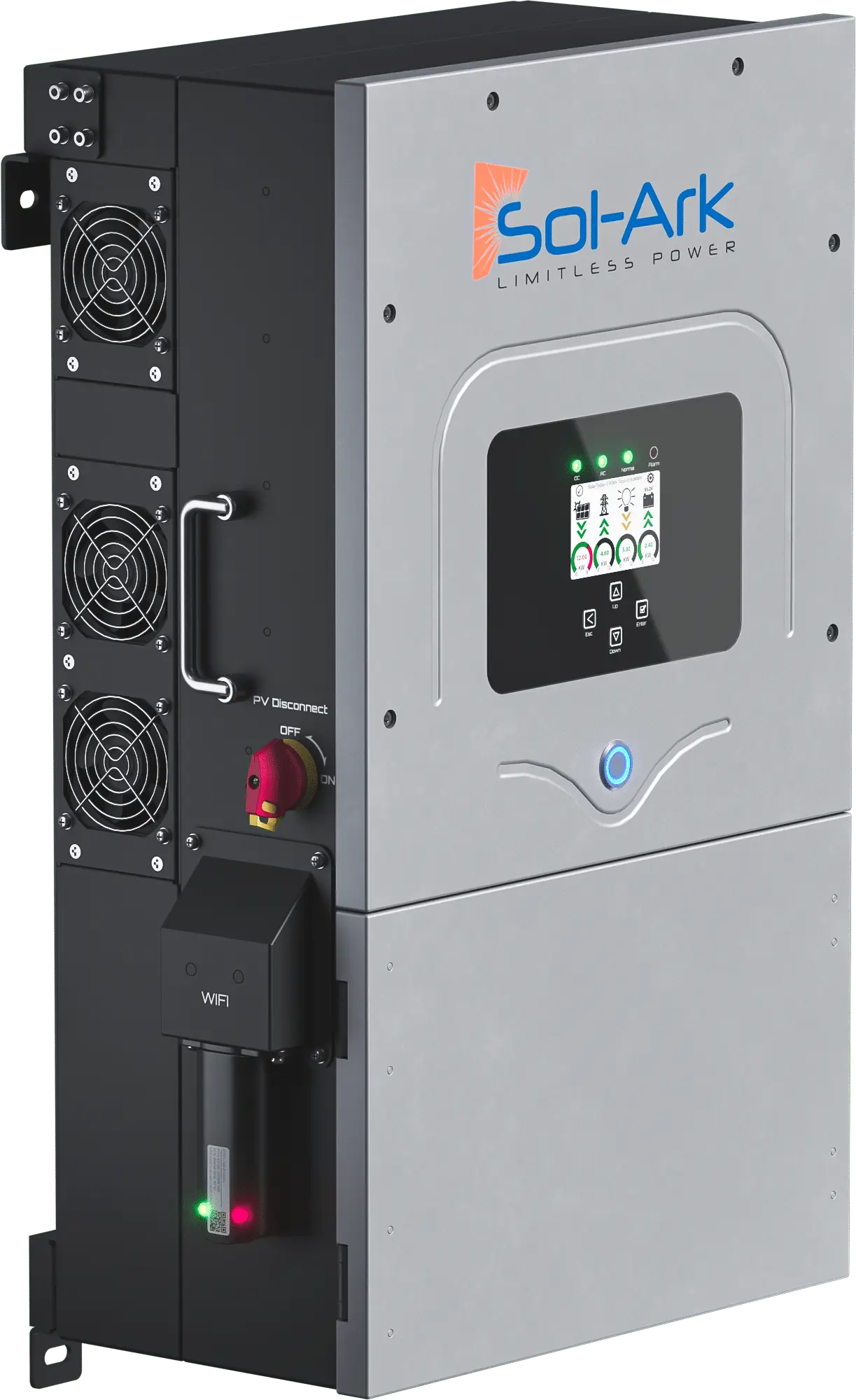

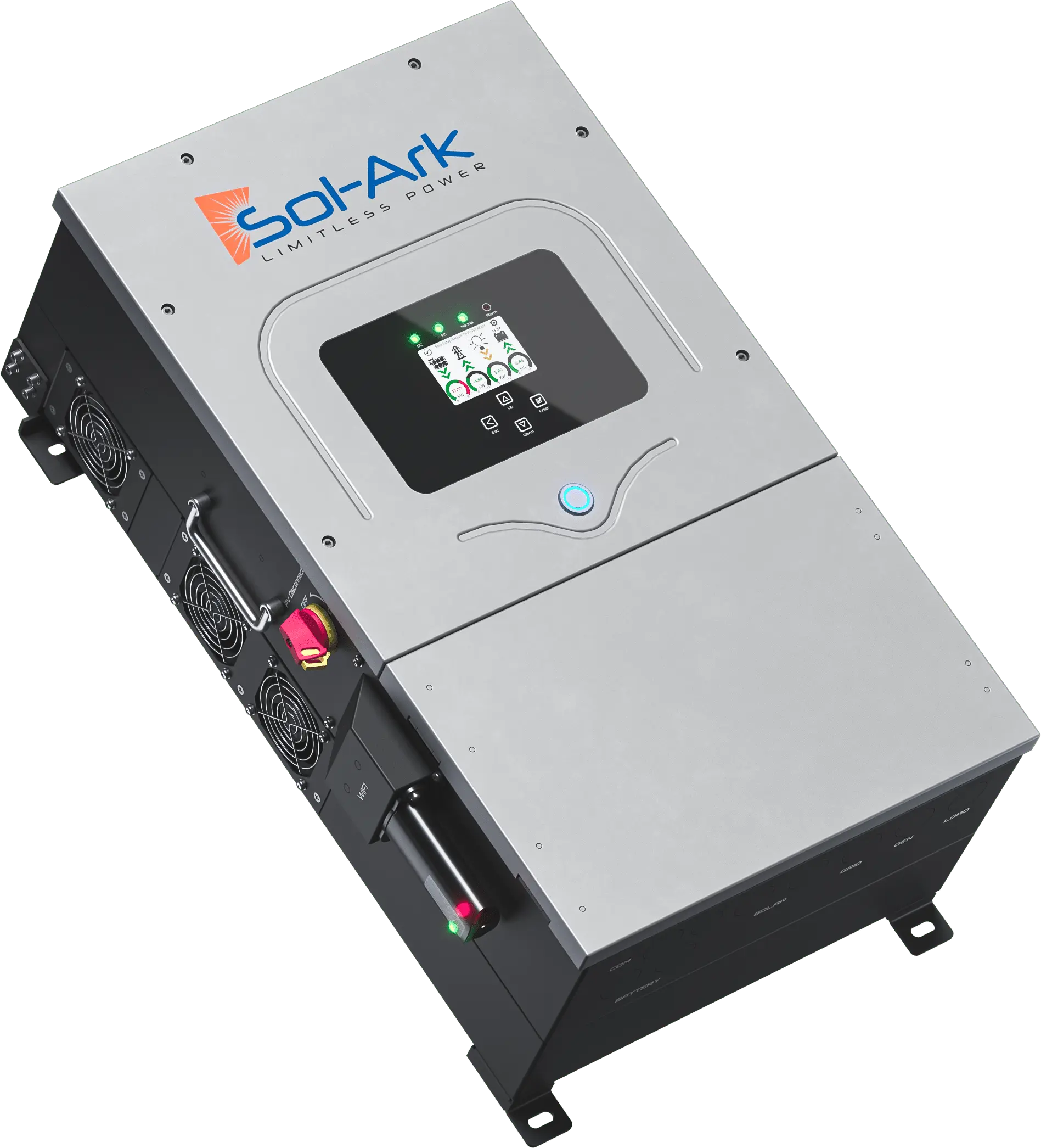

Sol-Ark 15K All-In-One Hybrid Inverter
Highlights
- All-In-One Design: Pre-wired with inverter, charge controller, and essential components for a streamlined installation
- Flexible Power Options: Works both off-grid and on-grid with advanced features like grid selling, peak shaving, and smart load management
- Battery Agnostic: Compatible with diverse 48V battery chemistries, including lithium and lead-acid
- Long-Lasting Reliability: Engineered, tested, and supported in the USA with 24/7 customer support
- Remote Monitoring: Control and monitor your system via the Sol-Ark app on any smart device
Sol-Ark 15K All-In-One Hybrid Inverter – Simplify Installation, Maximize Efficiency
The Sol-Ark 15K All-In-One Hybrid Inverter is a game-changer in solar power systems, integrating an inverter, charge controller, and essential components into one compact, pre-wired unit. This high-capacity inverter eliminates the need for extra fuses, breakers, or combiner boxes, making installation faster, easier, and more cost-effective. With its versatile design, this inverter is ideal for a variety of applications—whether you’re off-grid, on-grid, or seeking hybrid energy solutions for whole-home backup.
Perfect for homeowners and commercial setups alike, the Sol-Ark 15K enables seamless integration with both grid-tied and off-grid systems, allowing you to save on electric bills or go fully off-grid with confidence.
Key Specifications
| Specification | Details |
|---|---|
| Model | Sol-Ark 15K All-In-One Hybrid Inverter |
| Output Voltage | 120/240/208V (120/240V split-phase, 220V single-phase, 120/208V 3-phase) |
| Power Output | 15KW |
| Voltage | 48V |
| Battery Compatibility | 48V battery banks (lead-acid, lithium, and more) |
| Efficiency | Highly efficient |
| Operating Modes | Grid-tie, off-grid, hybrid (with or without batteries) |
| Display | Color touchscreen |
| Monitoring | Remote monitoring via Sol-Ark app |
| Warranty | 10 years |
| Dimensions | 807 x 494 x 306 mm (31.8 x 19.4 x 12 in) |
| Weight | 61.2 Kg / 135 lb. |
Key Features
- Limitless Power Options: Supports off-grid, on-grid, and hybrid use with advanced features like grid selling, peak shaving, meter zeroing, and time-of-use management.
- 200A Passthrough: Enables whole-home backup without needing a subpanel.
- Battery Compatibility: Compatible with a wide range of 48V batteries, from lead to lithium, providing flexibility and cost savings.
- Durability and Reliability: Engineered and tested to last well beyond the 10-year warranty period.
- Remote Monitoring and Control: Access, control, and adjust settings from any smart device using the Sol-Ark app.
With the Sol-Ark 15K All-In-One Hybrid Inverter, you get a powerful, versatile system that not only reduces installation time but also enhances the performance and durability of your solar power system. For any questions or support, Sol-Ark’s U.S.-based engineers are available 7 days a week to assist with technical inquiries.
Specifications & Dimension
Limitless 15K-LV Inverter
| General | |
| Model | Limitless 15K-LV |
| SKU | 15K-2P |
| Design | Transformerless DC |
| Stackable | Up to 12 in parallel |
| Standard Warranty | 10 Years |
| Input Data (PV) | |
| Max. Allowed PV Power (STC) | 19,500W |
| Rated MPPT Operating Voltage Range | 175 – 425V |
| MPPT Voltage Range | 150 – 500V |
| Startup Voltage | 125V |
| Max. DC Input Voltage | 500V |
| Max. Operating Input Current per MPPT | 26A |
| Max. Short Circuit Current per MPPT | 44A |
| No. of MPP Trackers | 3 |
| No. of PV Strings per MPPT | 2 |
| Max. AC Coupled Input | 19,200W |
| Output Data (AC) | |
| Nominal AC Voltage | 120/240V, 120/208V, 220V |
| Grid Frequency | 50 / 60Hz |
| Real Power (max continuous) | 15,000W |
| Max. Output Current | 62.5A |
| Real Power (batteries only, no PV) | 12,000W (50A @ 240V) |
| Peak Apparent Power (10s, off-grid) | 24,000VA @ 240V |
| Peak Apparent Power (100ms, off-grid) | 30,000VA @ 240V |
| Max Output Fault Current (5s) | 94A with PV, 75A (batteries only) |
| Max Output Fault Current (100ms) | 120A |
| Max. Grid Passthrough Current | 200A |
| Power Factor Output Range | +/- 0.9 adjustable |
| Backup Transfer Time | 5ms |
| CEC Efficiency | 96.5% |
| Max Efficiency | 97.5% |
| Battery Input (DC) | |
| Supported Battery Technologies | Lithium / Lead Acid |
| Nominal DC Voltage | 48V |
| Operating Voltage Range | 43 – 63V |
| Battery Capacity | 50 – 9900Ah |
| Max. Battery Charge/Discharge Current | 275A |
| Battery Disconnecting Means | 200A/pole x 2 |
| Charging Controller | 3-Stage with Equalization |
| Grid to Battery Charging Efficiency | 96.0% |
| External Battery Temperature Sensor (BTS) | Included |
| Automatic Generator Start (AGS) | 2 Wire Start - Integrated |
| BMS Communication | CANBus & RS485 MODBUS |
| Physical | |
| Dimensions (HxWxD) | 807 x 494 x 306 mm (31.8 x 19.4 x 12 in) |
| Weight | 61.2 kg / 135 lb |
| Enclosure | IP65 / NEMA 3R |
| Ambient Temperature Range | -25°C to 55°C (derating > 45°C) |
| Noise Level | < 30 dB @ 25°C |
| Idle Consumption - No Load | 90W |
| Communication and Monitoring | |
| Wi-Fi & LAN | Hardware Included |
| Certifications & Protection | |
| Certifications | UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H |
| PV DC Disconnect Switch | NEC 240.15 - Integrated |
| Ground Fault Detection | NEC 690.5 - Integrated |
| PV Rapid Shutdown Control | NEC 690.12 - Integrated |
| PV Arc Fault Detection | NEC 690.11 - Integrated |
| PV Input Lightning Protection | Integrated |
PV String Input Reverse Polarity
