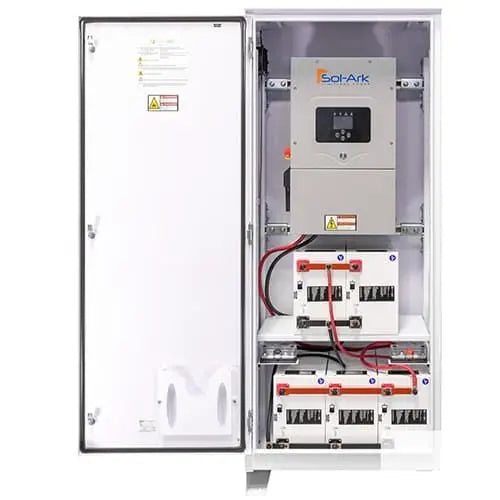

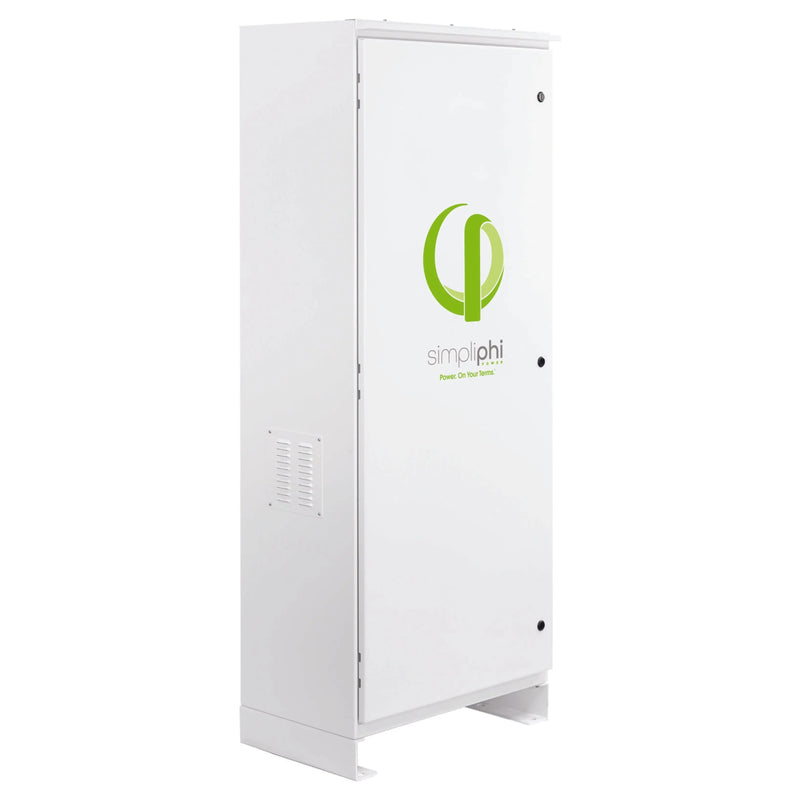

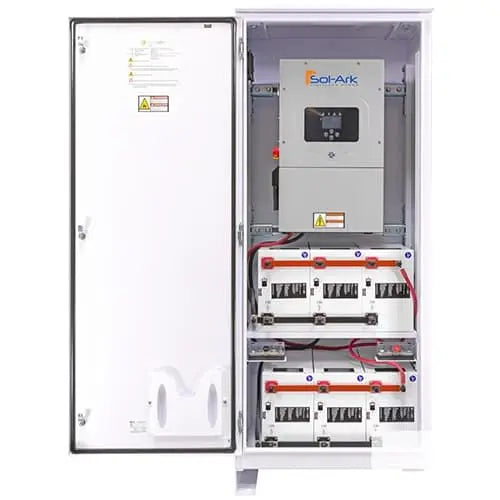

A fully integrated energy storage & management solution with Sol-Ark equipment
SimpliPhi Power's AccESS with PHI 3.8-M batteries and Sol-Ark inverter is a fully integrated and pre-programmed energy storage and management solution. With 15.2kWh, 19kWh or 22.8Wh of total capacity, the AccESS keeps the lights on and lowers utility bills, creating peace of mind for homeowners and businesses.
SimpliPhi Power's AccESS with PHI 3.8-M batteries and Sol-Ark inverter is a fully integrated and pre-programmed energy storage and management solution. With 15.2kWh, 19kWh or 22.8Wh of total capacity, the AccESS keeps the lights on and lowers utility bills, creating peace of mind for homeowners and businesses. The AccESS supports a wide variety of applications, and multiple generation sources: Solar, Grid or Generators. Maximize solar PV generation by storing excess power for critical backup, evening hours and daily self-consumption to offset Time-Of-Use rates. Net- Metered customers can add energy storage to existing grid-tied solar systems for standby power or energy arbitrage. Off-grid customers and customers installing new, non-retrofitted renewable energy systems can take advantage of integrated MPPT charge controls to create stand-alone or grid-tied systems for whole-home power and generator optimization with auto start capabilities. With over 60 different, scalable UL 9540 Certified combinations, you can create resilience, energy security and daily cost savings with 98% efficient, safe and reliable access to power - 24/7.SimpliPhi Power designs and manufactures efficient, non-toxic and enduring energy storage and management systems that utilize lithium ferro phosphate (LFP). Based in California, SimpliPhi combines non-hazardous LFP chemistry with its proprietary cell and battery architecture, power electronics, battery management system (BMS) and manufacturing methods to create safe, reliable, durable and highly scalable on-demand power solutions. Available for the residential, commercial, military and emergency response markets, SimpliPhi storage solutions have been rigorously tested and passed operational performance requirements by the U.S. Army and Marine Corps. Integral to all SimpliPhi solutions is a proprietary management system that further optimizes the life-cycle, round-trip efficiency rate, performance and durability of its batteries. SimpliPhi PHI 3.8-M 3.8kWh 48V 60 Amp batteries are Certified to UL 1973 Standard and safety tested to 9540A.
General | |
Dimensions | 29.5” W x 76”H (w/feet) x 20” D / 75 cm W x 193 cm H x 51 cm D |
Weight | 600 lbs (270 kg) (w/out batteries) |
Enclosure Rating | NEMA 3R Outdoor rated |
Operating Temperature | -4F to 122F (-20C to 50C) |
Charging Temperature (batteries) | 32F to 120F (0 C to 49C) |
Mounting | Free-standing or Pad-mounted |
Enclosure Warranty Period | 2 years |
Certifications | UL1741SA Rule 21, HECO Rule 14H, SGIP Approved, PREPA Approved, Rapid Shutdown compliant, UL 9540, included batteries ETL certified and certified to UL 1973 |
Inverter | |
Sol-Ark | Sol-Ark 12K |
Application | On or Off-Grid |
AC Connections | 1 Bi-Directional Grid Port (63A double-pole), 1 UPS Load Output (50A double-pole), 1 Generator Port (63A double-pole); can be used for Smart Loads output |
Output Frequency (selectable) | 60 Hz or 50 Hz |
Output Voltage | L-N: 120VAC; L-L: 240VAC | L-L: 208VAC (2/3 phases in 1X and 2X Sol-Ark 12K configurations, 3/3 phases in 3X Sol-Ark 12K quantity configurations) | 230VAC |
Off-Grid Output Power System | 9 kW Continuous |
Solar PV Continuous Power | 12 kW |
Inverter AC Continuous Power | 9 kW |
Inverter Battery Continuous Power | To grid: 9 kW per Sol-Ark 12K |
Max Output Charging Current | 185 ADC |
CEC Weighted Efficiency | 96.5% |
Warranty Period | 10 yr standard |
Parallel Stacking | Yes (needed for true 3 phase power) |
Other Features | Sol-Ark 12K units may be EMP hardened upon request (against Nuclear EMP and Solar Flare) EMP protection does not include the paired batteries, Smart Load capabilities (CTs included) |
Solar PV - DC Coupled | |
Sol-Ark Dual MPPT | 1 - 6 PV String Inputs (3 max per MPPT) |
Max Connected PV Power | 13 kW 12 kW max simultaneous utilization |
Min PV Array Starting Voltage | 175 VDC |
Max Open Circuit PV Array Voltage | 500 Voc per PV String |
MPPT Voltage Range | 150 - 425 VDC |
Max Array Short Circuit Current | 33A per MPPT |
Max Array Operating Current | 20A per MPPT @ 300V | 18A per MPPT @ 400V |
Solar PV - AC Coupled | |
Max AC Coupled Input | 9.6 kW (string or micro-inverters) |
Other Features | |
Internet Connected Computer or Phone App | PowerView ES Monitor and Programming |
Automatic Generator Start | Two-Wire Automatic Generator Start |
Battery | |
SimpliPhi Power | PHI 3.8-48-60: Maximum Rated Capacity 3.87kWh @ 48V |
Maximum Rated Unit kWh Capacity @ C/2 | 4 Battery: 15.48 kWh | 5 Battery: 19.35 kWh |
Usable kWh Capacity @ 80% DoD | 4 Battery: 12.38 kWh | 5 Battery: 15.48 kWh |
Max Combined Output Power | 11.4 kW DC |
Max Combined Charge Current | Limited to 185 ADC per Sol-Ark 12K |
Charging Temperature | 32F to 120F (0C to 49C) |
Depth of Discharge3 | up to 100% DoD |
AC to AC Round Trip Efficiency | >90% |
Cycle Life | 10,000+ (@ 80% DOD) |
Warranty Period | 10 years |
Model Number | A-4PHI-SA | A-5PHI-SA |
General | |
Dimensions | 29.5” W x 76”H (w/feet) x 20” D / 75 cm W x 193 cm H x 51 cm D |
Weight | 600 lbs (270 kg) (w/out batteries) |
Enclosure Rating | NEMA 3R Outdoor rated |
Operating Temperature | -4F to 122F (-20C to 50C) |
Charging Temperature (batteries) | 32F to 120F (0 C to 49C) |
Mounting | Free-standing or Pad-mounted |
Enclosure Warranty Period | 2 years |
Certifications | UL1741SA Rule 21, HECO Rule 14H, SGIP Approved, PREPA Approved, Rapid Shutdown compliant, UL 9540, included batteries ETL certified and certified to UL 1973 |
Inverter | |
Sol-Ark | Sol-Ark 12K |
Application | On or Off-Grid |
AC Connections | 1 Bi-Directional Grid Port (63A double-pole), 1 UPS Load Output (50A double-pole), 1 Generator Port (63A double-pole); can be used for Smart Loads output |
Output Frequency (selectable) | 60 Hz or 50 Hz |
Output Voltage | L-N: 120VAC; L-L: 240VAC | L-L: 208VAC (2/3 phases in 1X and 2X Sol-Ark 12K configurations, 3/3 phases in 3X Sol-Ark 12K quantity configurations) | 230VAC |
Off-Grid Output Power System | 9 kW Continuous |
Solar PV Continuous Power | 12 kW |
Inverter AC Continuous Power | 9 kW |
Inverter Battery Continuous Power | To grid: 9 kW per Sol-Ark 12K |
Max Output Charging Current | 185 ADC |
CEC Weighted Efficiency | 96.5% |
Warranty Period | 10 yr standard |
Parallel Stacking | Yes (needed for true 3 phase power) |
Other Features | Sol-Ark 12K units may be EMP hardened upon request (against Nuclear EMP and Solar Flare) EMP protection does not include the paired batteries, Smart Load capabilities (CTs included) |
Solar PV - DC Coupled | |
Sol-Ark Dual MPPT | 1 - 6 PV String Inputs (3 max per MPPT) |
Max Connected PV Power | 13 kW 12 kW max simultaneous utilization |
Min PV Array Starting Voltage | 175 VDC |
Max Open Circuit PV Array Voltage | 500 Voc per PV String |
MPPT Voltage Range | 150 - 425 VDC |
Max Array Short Circuit Current | 33A per MPPT |
Max Array Operating Current | 20A per MPPT @ 300V | 18A per MPPT @ 400V |
Solar PV - AC Coupled | |
Max AC Coupled Input | 9.6 kW (string or micro-inverters) |
Other Features | |
Internet Connected Computer or Phone App | PowerView ES Monitor and Programming |
Automatic Generator Start | Two-Wire Automatic Generator Start |
Battery | |
SimpliPhi Power | PHI 3.8 kWh-48V Battery |
Rated kWh Capacity @ C/2 | 19 kWh, up to 136.8kWh with additional BOSS cabinets |
Usable kWh Capacity @ 80% DoD | 15.2 kWh, up to 109.4 kWh with additional BOSS cabinets |
Max Combined Output Power | 11.4 kW DC or up to 69.1 kW DC (limited to up to 27kW AC by up to 3 x Sol-Ark 12k’s) |
Max Combined Charge Current | Limited to 185 ADC per Sol-Ark 12K |
Charging Temperature | 32F to 120F (0C to 49C) |
Depth of Discharge3 | up to 100% DoD |
Round Trip Efficiency | 98% |
Cycle Life | 10,000+ (@ 80% DOD) |
Warranty Period | 10 years |
Model Number | A-XPHI-SA, A-XPHI-2SA-SP, A-XPHI-3SA-SP, A-XPHI-3SA-3P |
