Description

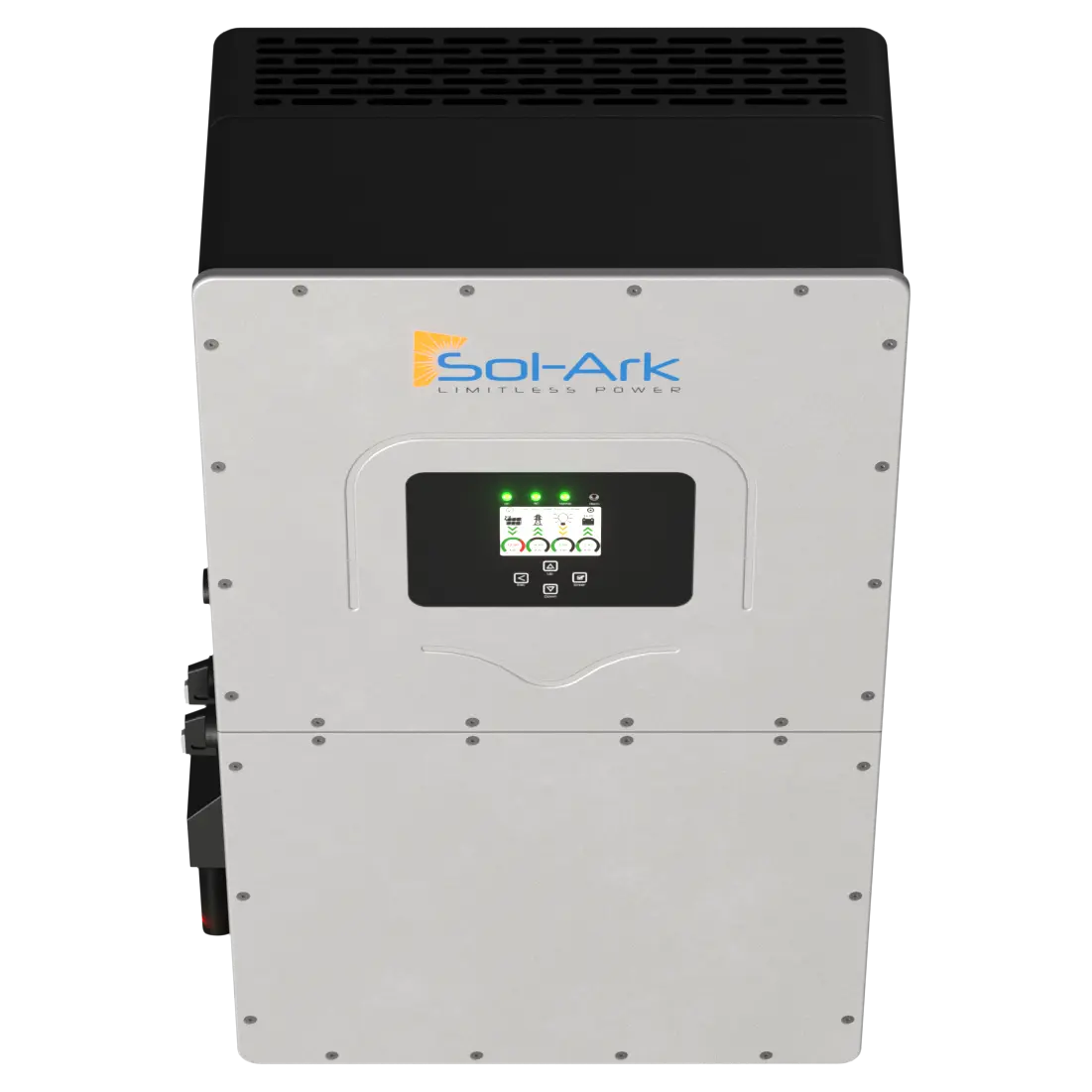

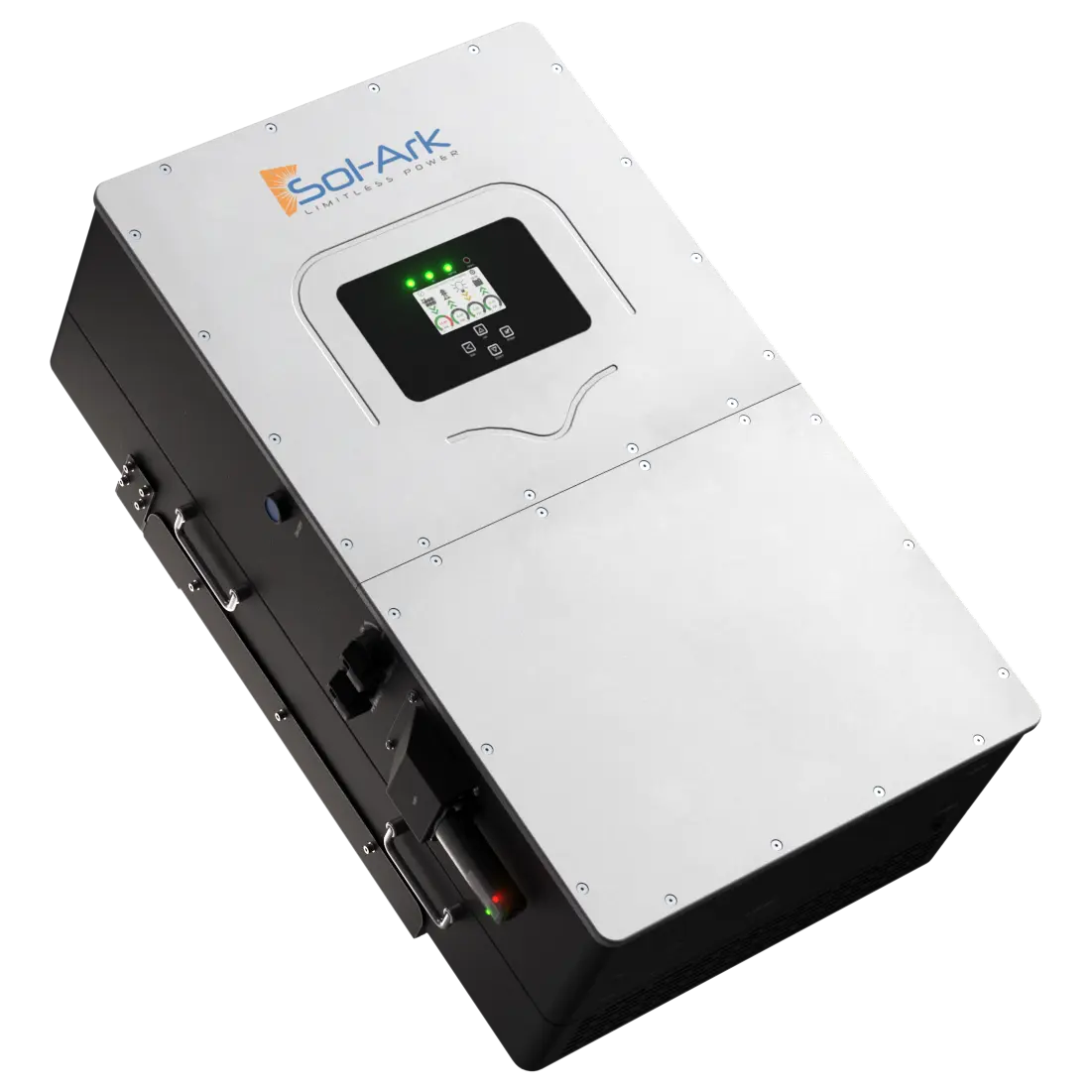

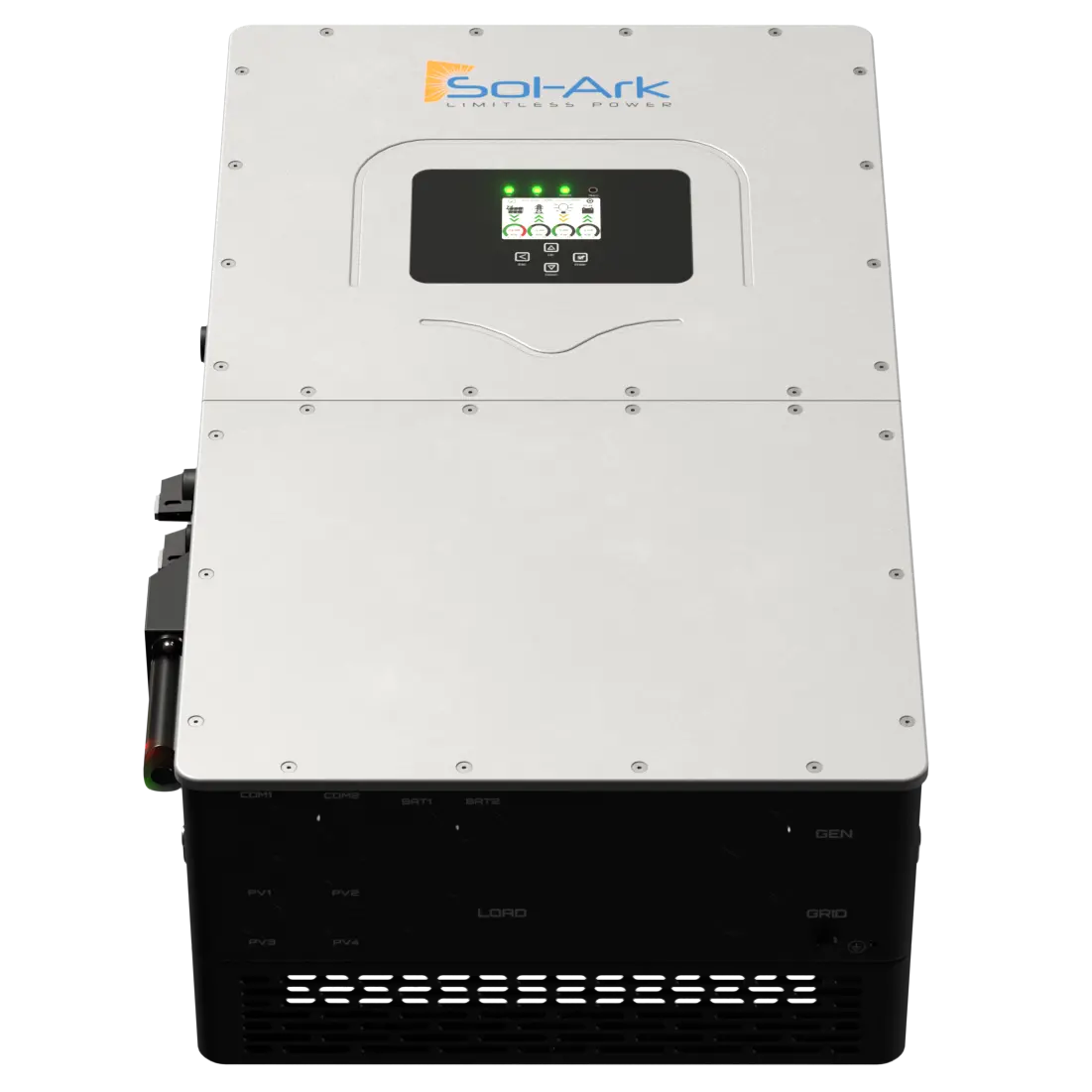

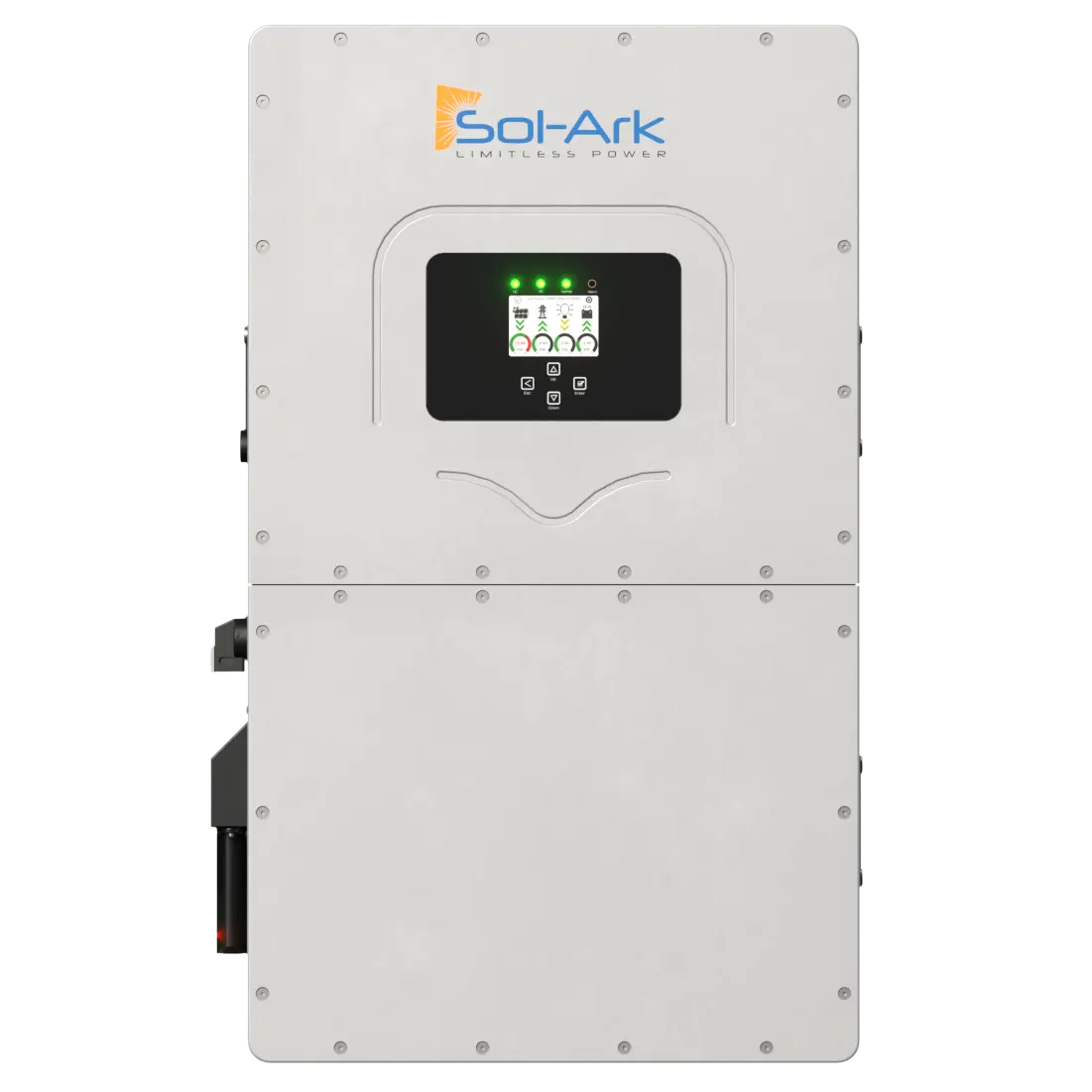

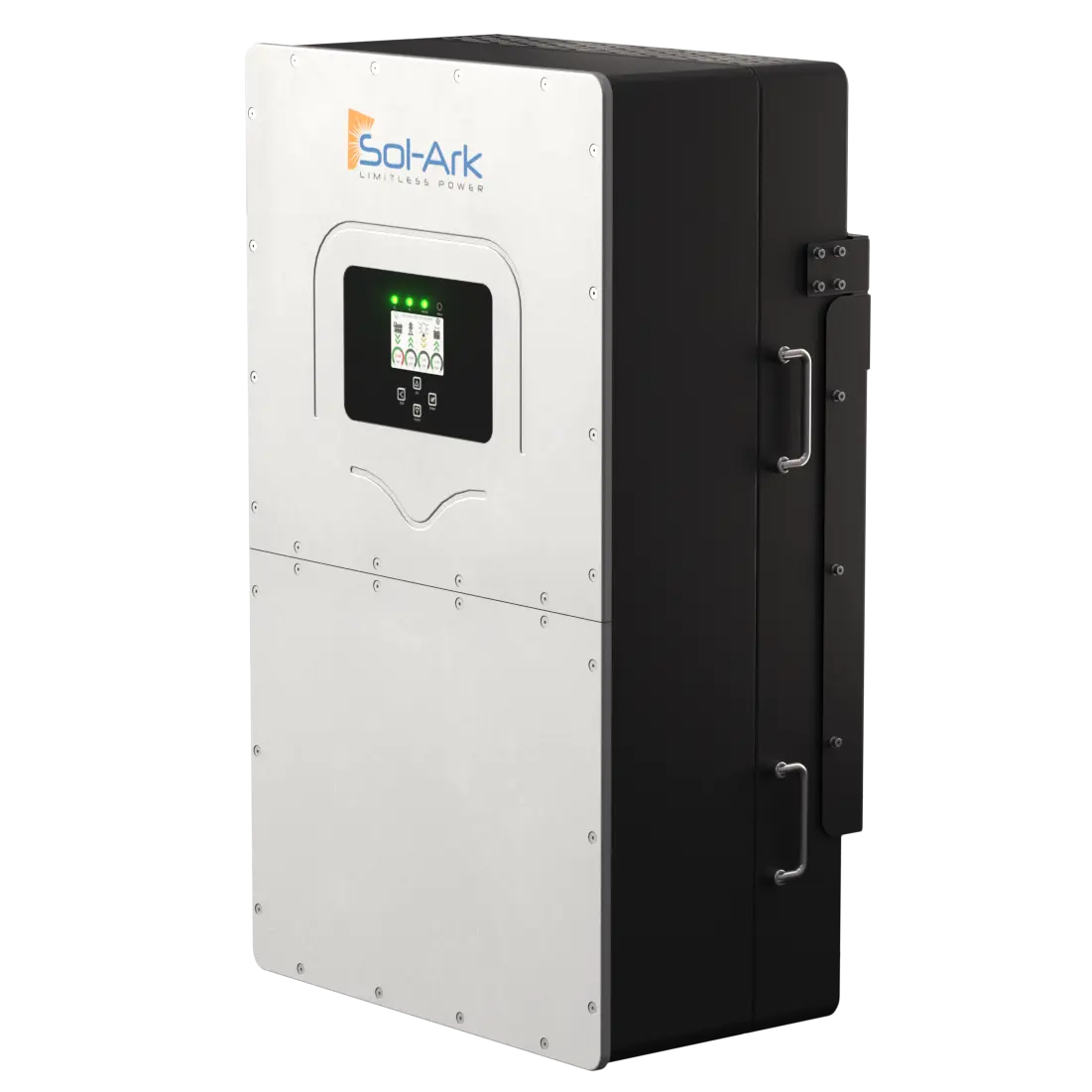

Sol-Ark 60K All-In-One Hybrid Solar Inverter
The Sol-Ark 60K Hybrid Inverter is a powerhouse system engineered for large-scale residential, commercial, and industrial applications. This all-in-one, pre-wired solution combines solar, battery, and generator management in a rugged outdoor-rated case, eliminating the need for fuses, breakers, or external combiner boxes—drastically reducing install time and cost.
Designed to handle energy-hungry environments, the Sol-Ark 60K can deliver up to 60,000W of output power and store up to 102 kWh of energy. Whether you’re reducing demand charges in a commercial building, powering large off-grid estates, or seeking advanced energy independence with battery backup, this system is ready.
All-In-One Simplicity, Military-Grade Reliability
The Sol-Ark 60K is transformerless and includes a touchscreen display, charge controller, and remote monitoring capabilities. With highly accelerated life testing and a rugged build, it’s built to exceed expectations—lasting well beyond its 10-year warranty. It also features remote monitoring, battery agnosticism, and compatibility with lead-acid and lithium 48V batteries.
Advanced Features & Applications
- High Output Power – Run large homes, farms, or commercial spaces with 60,000W of continuous AC output
- Battery Agnostic – Compatible with a wide range of 48V battery chemistries
- Remote Monitoring – Control and observe system health via smartphone, tablet, or desktop
- Expandable Storage – Store up to 102 kWh and scale up as your needs grow
- Smart Load & Time-of-Use Modes – Automate when and how power is used for maximum savings
- AC Coupling – Ideal for retrofitting existing grid-tied solar systems
- Rapid Shutdown & Auto Generator Start – Built for resilience and code compliance
Specifications & Dimension
Sol-Ark 60K-3P-480V Inverter
| General | |
| Model | 60K-3P-480V |
| SKU | 60K-3P-480V |
| Design | Transformerless DC |
| Stackable | Up to 10 in parallel |
| Warranty | 10 Years |
| Input Data (PV) | |
| Max. Allowed PV Power (STC) | 78,000W |
| MPPT Voltage Range | 150 – 850V |
| Startup Voltage | 180V |
| Max. DC Input Voltage | 1,000V |
| Max. Operating Input Current per MPPT | 36A |
| Max. Short Circuit Current per MPPT | 55A |
| No. of MPP Trackers | 4 |
| No. of PV Strings per MPPT | 2 |
| Max. AC Coupled Input | 60,000W |
| Output Data (AC) | |
| Nominal AC Voltage (3Φ) | 277/480V |
| Grid Frequency | 50 / 60Hz |
| Real Power (max continuous, 3Φ) | 60,000W |
| Max. Output Current | 72.3A |
| Peak Apparent Power (10s, off-grid, 3Φ) | 90,000VA |
| Max. Grid Passthrough Current (10 min) | 200A |
| Continuous Grid Passthrough Current | 180A |
| Power Factor Output Range | +/- 0.8 adjustable |
| Backup Transfer Time | 5ms (adjustable) |
| CEC Efficiency | 96.5% |
| Max Efficiency | 97.5% |
| Battery Input (DC) | |
| Supported Battery Chemistry | Lithium-ion |
| No. of Battery Inputs | 2 |
| Battery Input Terminal Rating | 50A |
| Nominal DC Voltage | ≥ 600V |
| Operating Voltage Range | 160 – 700V |
| Battery Capacity Range | 50 – 9900Ah |
| Max. Battery Charge / Discharge Current | 100A (50A per input) |
| Charge Controller Type | CC/CV - BMS Controlled |
| Grid to Battery Charging Efficiency | 96.0% |
| Automatic Generator Start (AGS) | 2 Wire Start - Integrated |
| BMS Communication | 2 CAN (Controller Area Network) |
| Physical | |
| Dimensions (HxWxD) | 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in) |
| Weight | 80 kg / 176 lb |
| Enclosure | IP65 / NEMA 3R |
| Operating Temperature | -40°C to 60°C (derating > 45°C) |
| Noise Level | < 30 dB @ 25°C |
| Idle Consumption - No Load | 60W |
| Communication and Monitoring | |
| Wi-Fi & LAN | Hardware Included |
| Certifications & Protection | |
| Certifications | UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP, CSIP |
| PV DC Disconnect Switch | NEC 240.15 - Integrated |
| Ground Fault Detection | NEC 690.5 - Integrated |
| PV Rapid Shutdown Control | NEC 690.12 - Integrated |
| PV Arc Fault Detection | NEC 690.11 - Integrated |
| PV Input Lightning Protection | Integrated |
| PV String Input Reverse Polarity Protection | Integrated |
| Surge Protection | DC Type II / AC Type III |
What's in the Box?
Guides & More
Shipping Policy
- Free & Fast Shipping
We offer free shipping on most Sol-Ark Hybrid Inverters orders across the lower 48 states, using the most reliable freight partners. Orders typically ship within 5 business days, with tracking provided within 24 hours of dispatch. - Tracking & Delivery Scheduling
You’ll receive an order confirmation email immediately after placing your order. Tracking details are usually shared within 3–5 business days. Please review your shipping address carefully—corrections after shipment may incur a fee. - Important Shipping Notes
Ensure your location can accommodate freight deliveries. Additional charges may apply for access-restricted areas, remote locations, or deliveries requiring special transport (e.g., ferry or plane).
See our full Shipping Policy here
Return Policy
- Hassle-Free Returns
We offer a 30-day return window from the date you receive your item. Items must be unused, in original packaging, and accompanied by proof of purchase. Some items may incur a 15–25% restocking fee, especially larger freight-shipped products. Cancellations made before shipping will incur a 3-5% processing fee. - Damaged or Special Orders
Please report any damages within 24 hours of delivery. Installed or opened items may not be returnable. Select brands such as Victron and Pytes may be non-returnable based on manufacturer policies.
See our full Return Policy here
What Sets it Apart
-
Massive Power Output
-
60,000W continuous output—ideal for large homes, businesses, or off-grid projects
-
Expandable Energy Bank
-
Supports up to 102kWh battery capacity and scales as needed
-
Built to Last
-
Rugged all-in-one outdoor case with military-grade accelerated life testing
See it in Action
