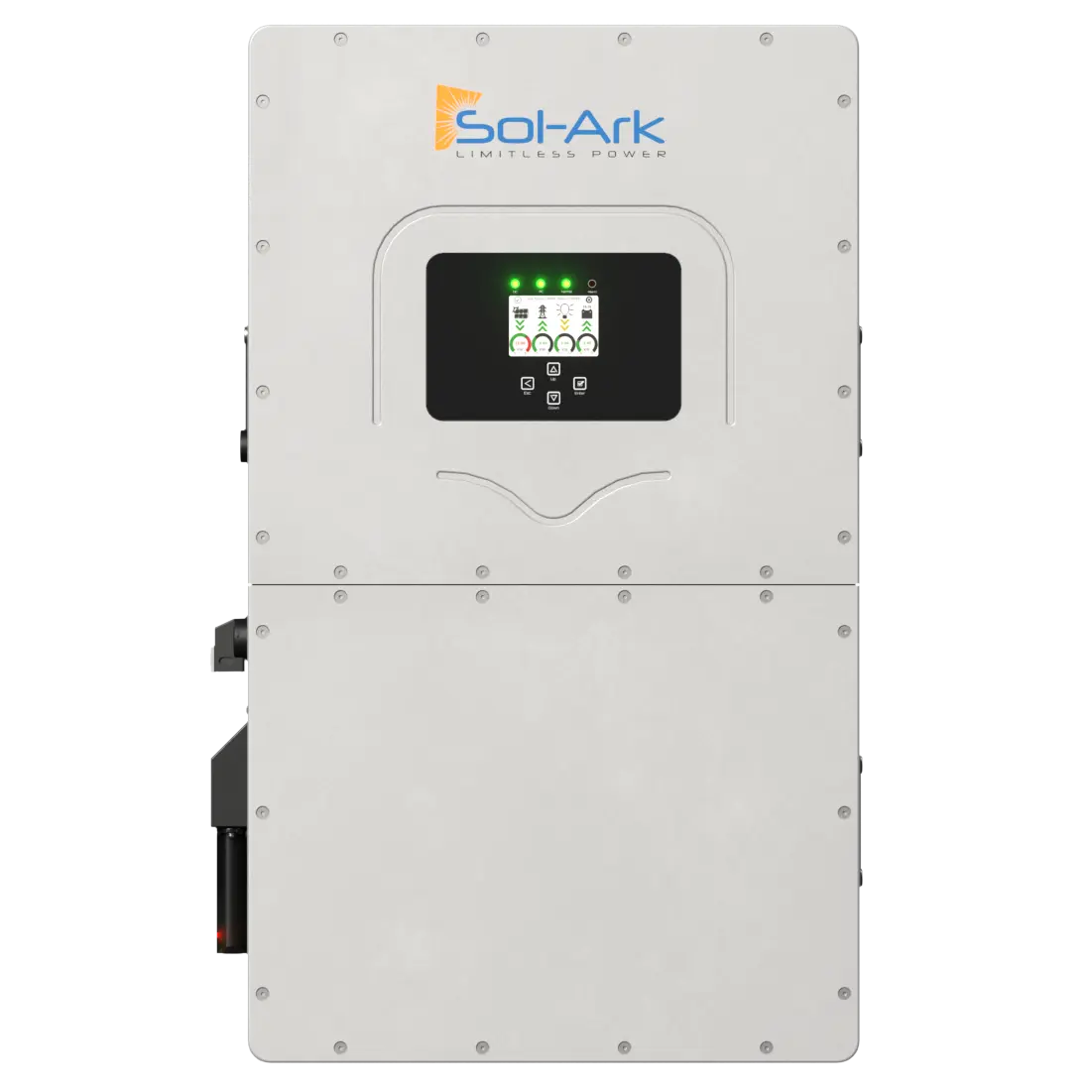

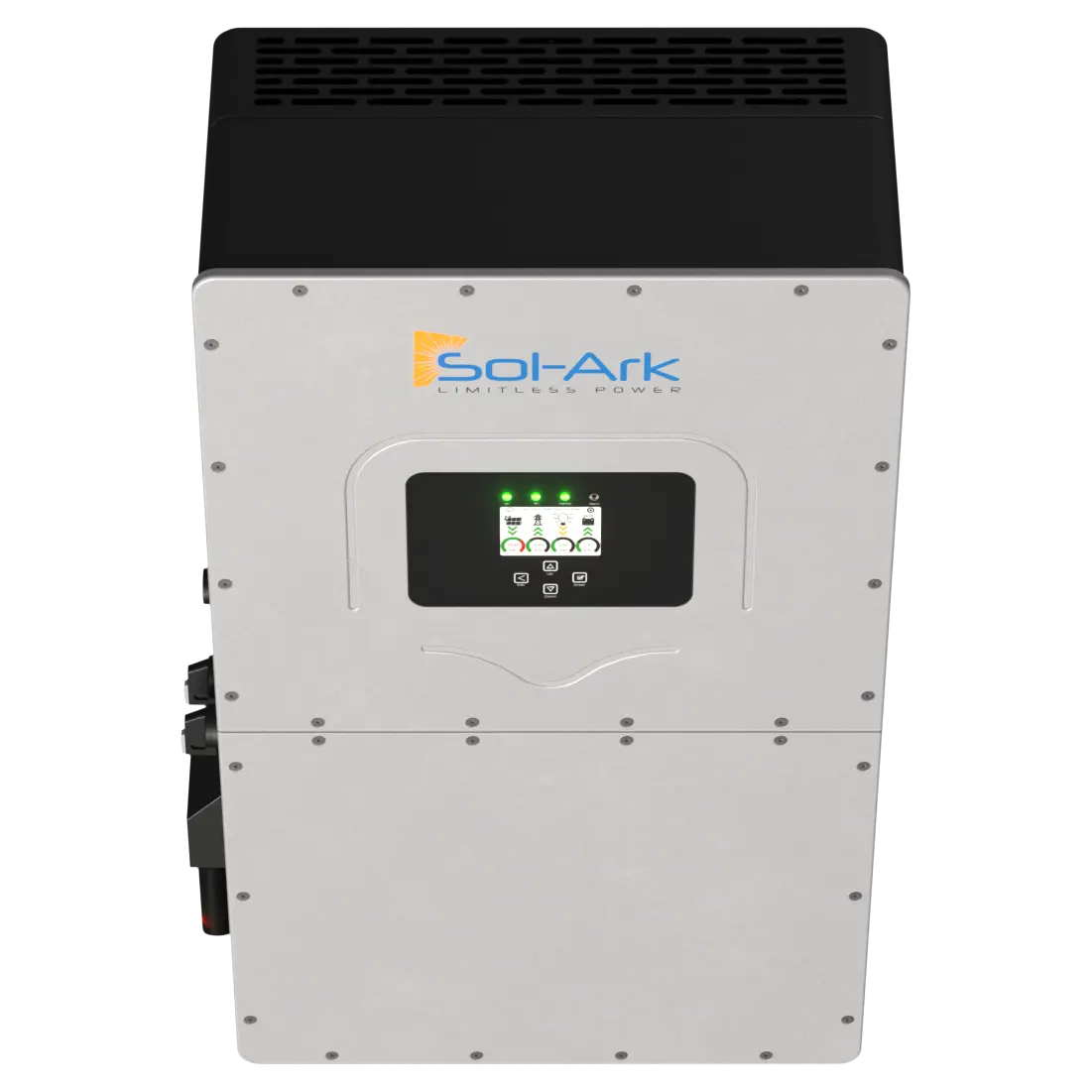

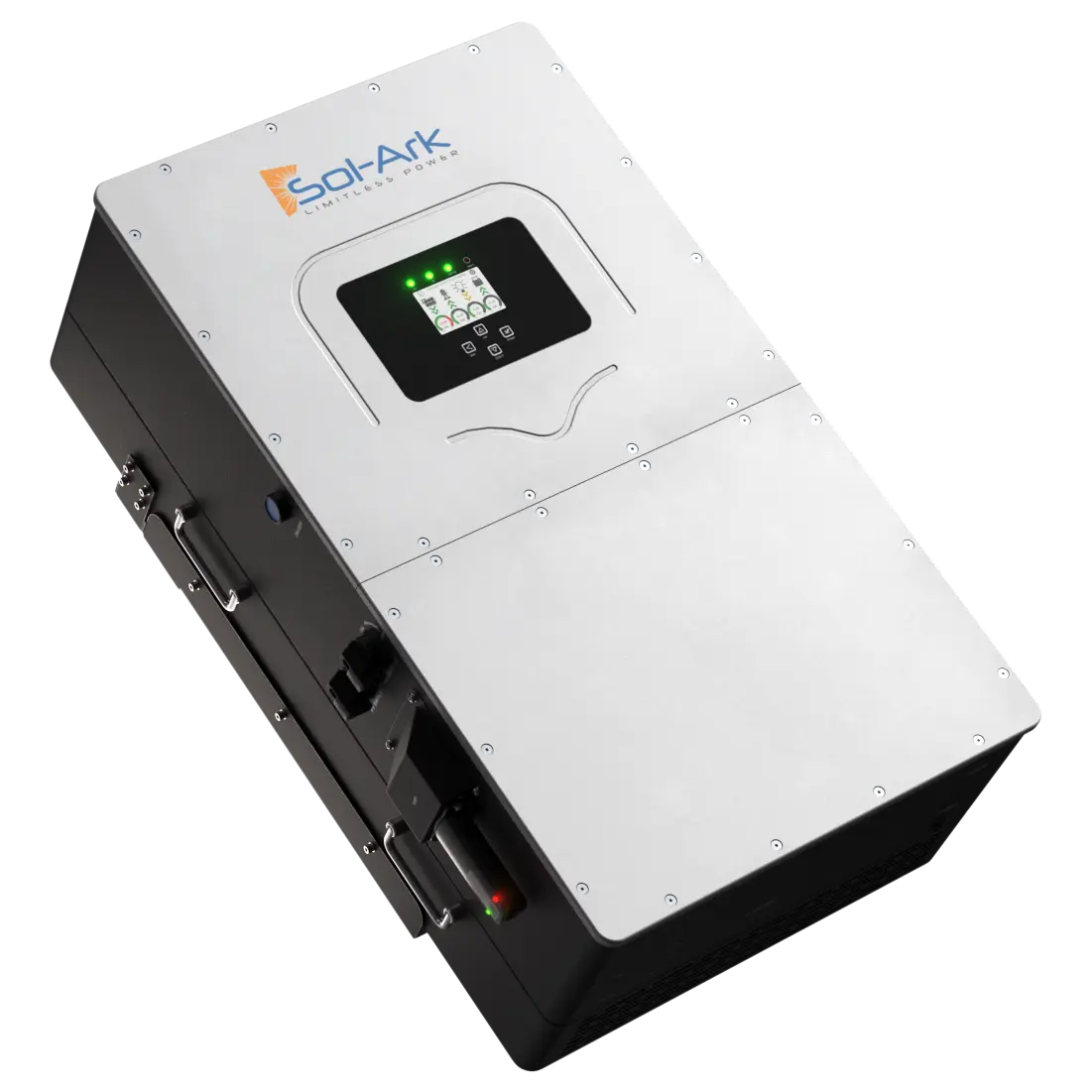

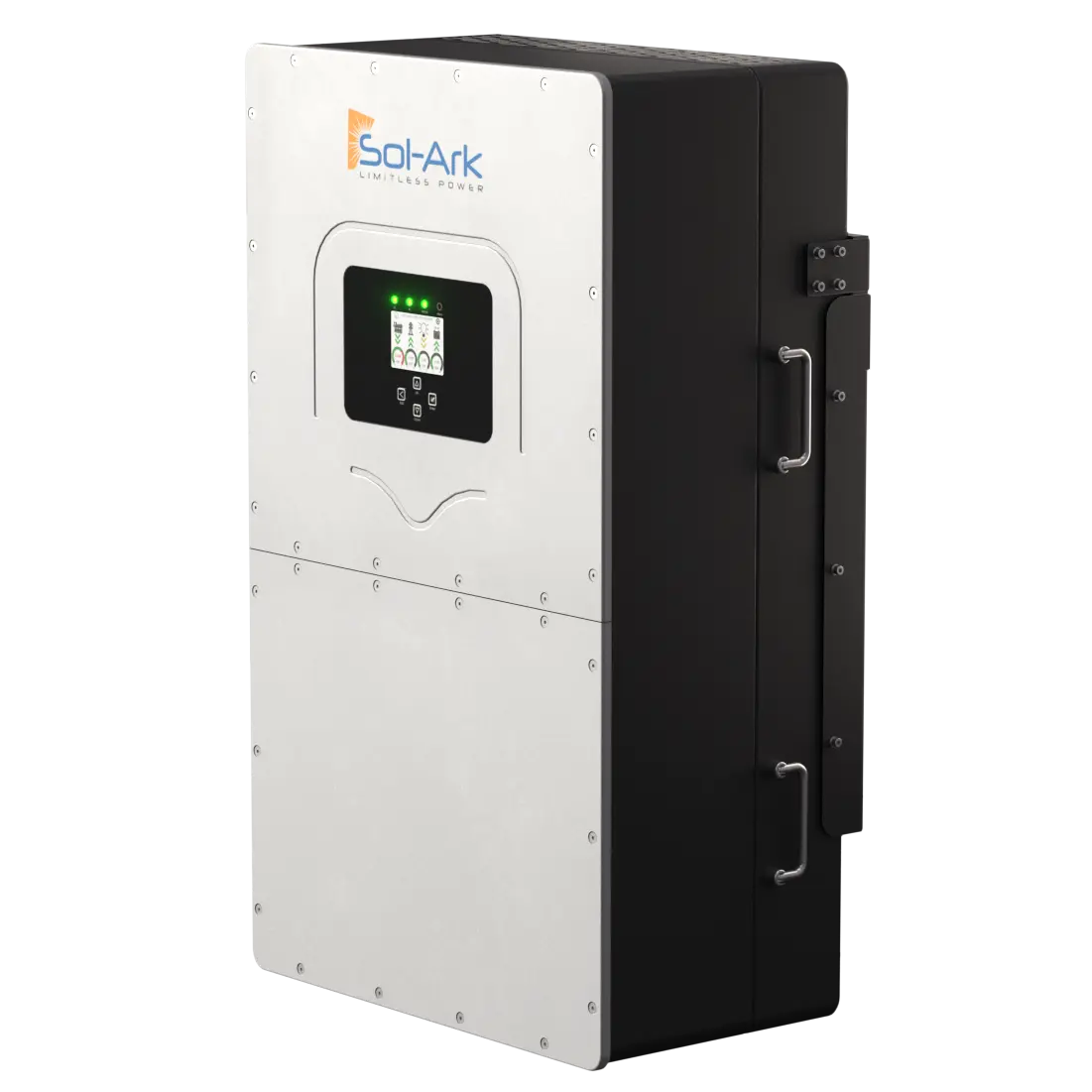

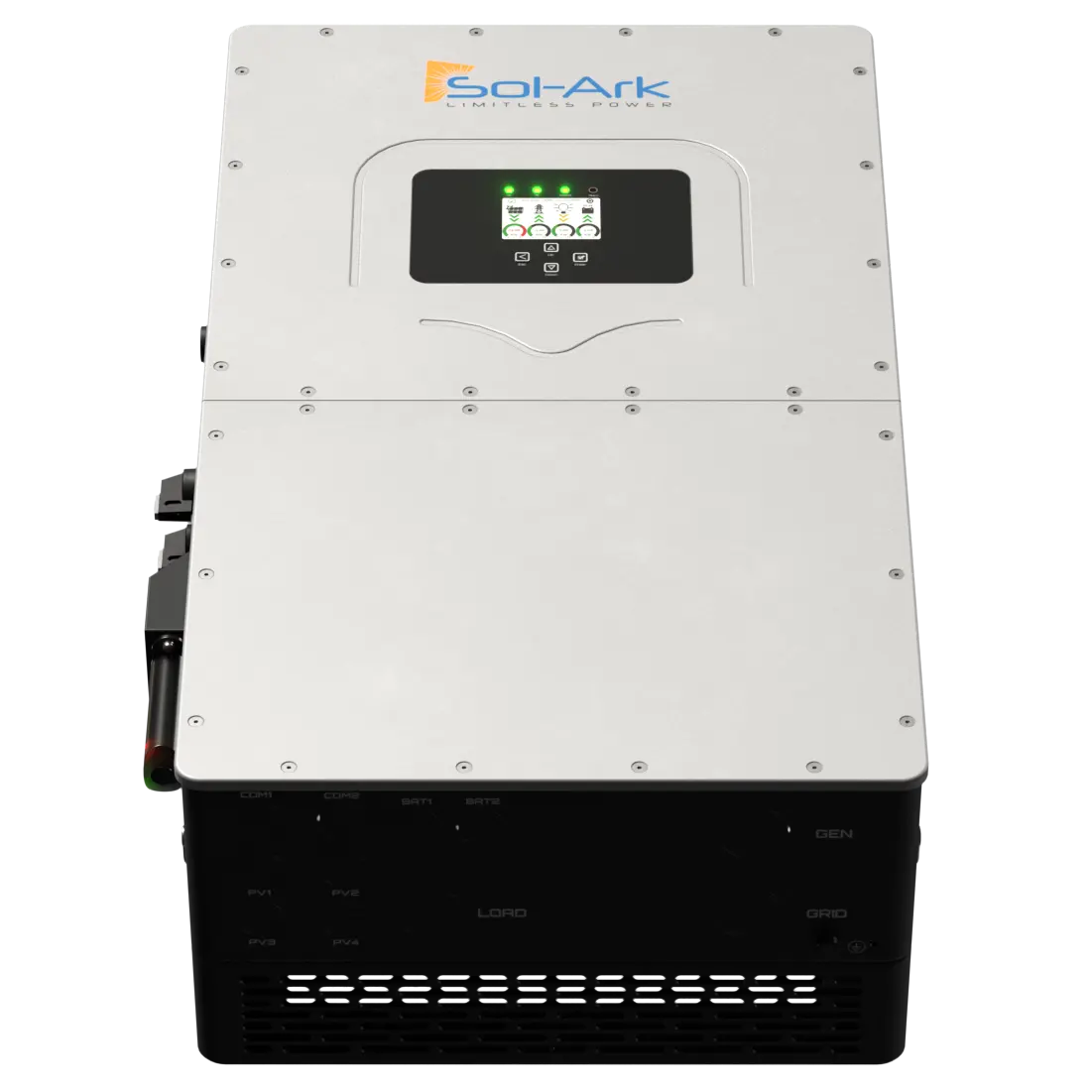

Sol-Ark 30K All-In-One Hybrid Solar Inverter
The Sol-Ark 30K All-In-One Hybrid Solar Inverter is a high-performance solar solution engineered for residential, commercial, and industrial applications. This pre-wired, transformerless inverter integrates solar, storage, and generator power into one seamless system, saving on installation time and cost.
With an impressive 30,000W output, the Sol-Ark 30K can easily manage high energy loads, powering everything from homes to commercial equipment. This inverter is compatible with High Voltage Batteries (160V - 500V), giving you the flexibility to choose from a wide range of battery options, including lead and lithium batteries. Plus, it’s designed to last with Highly Accelerated Life Testing and a 10-year warranty.
Powerful, Flexible, and Easy to Use
The Sol-Ark 30K is built for efficiency with a maximum conversion efficiency of 98%. You can store up to 102kWh of energy for use during power outages or nighttime. The system also features remote monitoring, allowing you to check your system’s performance via a smartphone or tablet anytime, anywhere.
Efficient and Cost-Effective Design
This all-in-one system eliminates the need for external components like fuses and breakers, reducing both installation time and overall system cost. Its ease of installation, high efficiency, and battery agnosticism make it the ideal choice for homeowners, businesses, and off-grid users.
Applications & Modes
- Grid-Tied Mode – Sell excess power back to the grid, reducing electricity bills
- Meter Zero Mode – Zero out your electric bill without additional meters
- Time-Of-Use Mode – Optimize grid power use during expensive peak hours
- Off-Grid – Use renewable energy for total independence
- Battery Backup – Keep critical appliances running during blackouts
Specifications & Dimension
Sol-Ark 30K-3P-208V Inverter
General:
Model: 30K-3P-208V
SKU: 30K-3P-208V
Design: Transformerless DC
Stackable: Up to 10 in parallel
Warranty: 10 Years
Input Data (PV):
Max. Allowed PV Power (STC): 39,000W
MPPT Voltage Range: 150 – 500V
Startup Voltage: 180V
Max. DC Input Voltage: 550V
Max. Operating Input Current per MPPT: 36A
Max. Short Circuit Current per MPPT: 55A
No. of MPP Trackers: 4
No. of PV Strings per MPPT: 2
Max. AC Coupled Input Power: 30,000W
Output Data (AC):
Nominal AC Voltage (3Φ): 120/208V
Grid Frequency: 50 / 60Hz
Real Power (max continuous, 3Φ): 30,000W
Max. Output Current: 83.4A
Peak Apparent Power (10s, off-grid, 3Φ): 45,000VA
Max. Grid Passthrough Current (10 min): 200A
Continuous Grid Passthrough Current: 180A
Power Factor Output Range: +/- 0.8 adjustable
Backup Transfer Time: 5ms (adjustable)
CEC Efficiency: 96.5%
Max Efficiency: 97.5%
Battery Input (DC):
Supported Battery Chemistry: Lithium-ion
No. of Battery Inputs: 2
Battery Input Terminal Rating: 50A
Nominal DC Voltage: ≥ 300V
Operating Voltage Range: 160 – 500V
Battery Capacity Range: 50 – 9900Ah
Max. Battery Charge / Discharge Current: 100A (50A per input)
Charge Controller Type: CC/CV - BMS Controlled
Grid to Battery Charging Efficiency: 96.0%
Automatic Generator Start (AGS): 2 Wire Start - Integrated
BMS Communication: 2 CAN (Controller Area Network)
Physical:
Dimensions (HxWxD): 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in)
Weight: 80 kg / 176 lb
Enclosure: IP65 / NEMA 3R
Operating Temperature: -40°C to 60°C (derating > 45°C)
Noise Level: < 30 dB @ 25°C
Idle Consumption - No Load: 60W
Communication and Monitoring:
Wi-Fi & LAN: Hardware Included
Certifications & Protection:
Certifications: UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP, CSIP
PV DC Disconnect Switch: NEC 240.15 - Integrated
Ground Fault Detection: NEC 690.5 - Integrated
PV Rapid Shutdown Control: NEC 690.12 - Integrated
PV Arc Fault Detection: NEC 690.11 - Integrated
PV Input Lightning Protection: Integrated
PV String Input Reverse Polarity Protection: Integrated
Surge Protection: DC Type II / AC Type III
What's in the Box?
- Sol-Ark 30K Hybrid Inverter (Outdoor-rated case)
- Pre-wired system with inverter and charge controller
- Color touchscreen interface
- Battery disconnect and temperature sensor
- Auto-generator start integration
- Rapid shutdown and PV disconnects
- Wiring knockouts and accessories
- Remote monitoring setup (WiFi-enabled)
- Installation manual
Guides & More
Shipping Policy
- Free & Fast Shipping
We offer free shipping on most Sol-Ark Hybrid Inverters orders across the lower 48 states, using the most reliable freight partners. Orders typically ship within 5 business days, with tracking provided within 24 hours of dispatch. - Tracking & Delivery Scheduling
You’ll receive an order confirmation email immediately after placing your order. Tracking details are usually shared within 3–5 business days. Please review your shipping address carefully—corrections after shipment may incur a fee. - Important Shipping Notes
Ensure your location can accommodate freight deliveries. Additional charges may apply for access-restricted areas, remote locations, or deliveries requiring special transport (e.g., ferry or plane).
See our full Shipping Policy here
Return Policy
- Hassle-Free Returns
We offer a 30-day return window from the date you receive your item. Items must be unused, in original packaging, and accompanied by proof of purchase. Some items may incur a 15–25% restocking fee, especially larger freight-shipped products. Cancellations made before shipping will incur a 3-5% processing fee. - Damaged or Special Orders
Please report any damages within 24 hours of delivery. Installed or opened items may not be returnable. Select brands such as Victron and Pytes may be non-returnable based on manufacturer policies.
See our full Return Policy here
"What we'd tell a friend"
-
Battery Agnostic
-
Compatible with a wide range of High Voltage Batteries (160V - 500V), including lithium and lead-acid.
-
Power Output
-
30,000W of continuous output, ideal for large homes, businesses, or off-grid systems.
-
Easy Installation
-
Pre-wired, all-in-one system with built-in features like battery disconnects and sensors for reduced installation time and costs.
See it in Action
Have a Question? We Have Answers
What types of batteries are compatible with the Sol-Ark 30K?
-
The Sol-Ark 30K is compatible with High Voltage Batteries (160V - 500V), including both lead-acid and lithium battery chemistries.
How does remote monitoring work for the Sol-Ark 30K?
-
Remote monitoring is accessible via the Sol-Ark app, allowing you to track your system’s performance, energy usage, and battery status from anywhere.
Can I install the Sol-Ark 30K myself?
-
Yes! The Sol-Ark 30K comes pre-wired and is designed for easy installation, eliminating the need for external fuses or combiner boxes. Although it is always recommended to have it be done by a professional.
