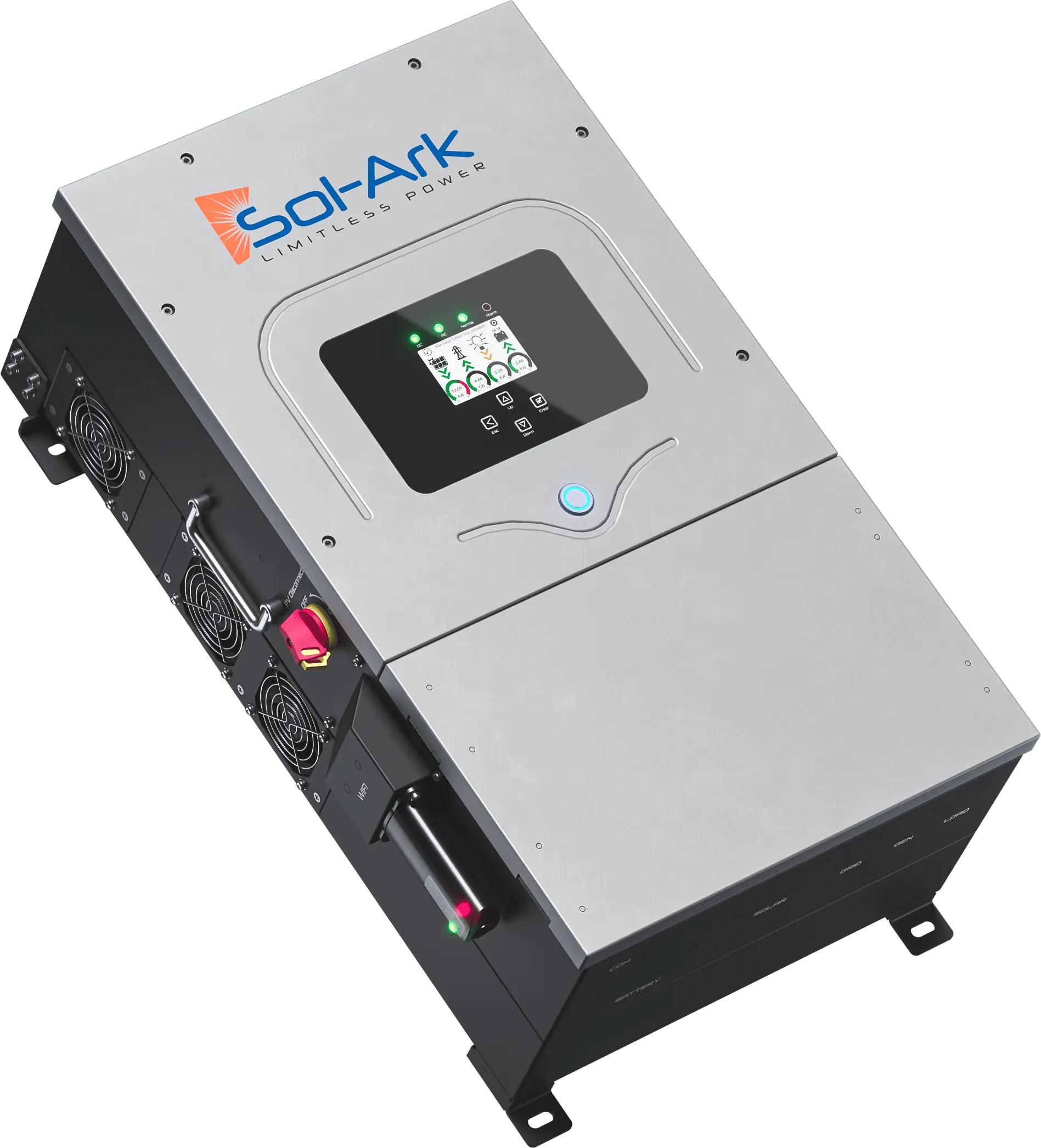

Sol-Ark 12k Hybrid Solar Inverter - 10 Year Warranty Included
Highlights
- Complete System: Pre-installed inverter with charge controllers and all necessary components included for a low-cost, simple installation.
- Versatile Power Generation: Powers appliances operating on 120V, 240V, and 208V.
- Battery Agnostic: Compatible with a wide range of 48V battery chemistries, including lead and lithium.
- Remote Management: Monitor and manage your power with the user-friendly app from anywhere.
- Outstanding Efficiency: Reduces costs by over 50% and improves battery efficiency by 10-15%.
Transform Your Energy System with the Sol-Ark 12K Hybrid Inverter
The Sol-Ark 12K Hybrid Solar Inverter is an advanced solution for both off-grid and on-grid solar power systems. This comprehensive unit integrates a charge controller and several built-in features, providing everything you need in one easy-to-install package. It is designed to help you maximize energy efficiency while keeping your installation costs low.
With a powerful output of 12,000 watts, the Sol-Ark 12K can easily meet the energy demands of your home. It is capable of generating electricity like the grid, allowing you to power appliances seamlessly. This self-contained unit simplifies the installation process by eliminating the need for additional hardware such as fuses, breakers, or combiner boxes.
Key Specifications
| Specification | Details |
|---|---|
| SKU | 12K-2P-N |
| Weight | 74 lbs |
| Battery Voltage | 48V |
| Inverter Power Rating | 9000W AC Continuous Output |
| Power (Watts) | 12000W |
| Standard Warranty | 10 years |
| Manufacturer | Sol-Ark |
| Class | Battery-based Inverter/Charger |
Key Features
- Two Built-In 500V Charge Controllers: Supports up to 6 PV strings for flexible solar array configurations.
- Advanced Safety Features: Includes built-in arc fault and ground fault detection for enhanced safety.
- Remote Access: Manage your energy system with a mobile app, allowing adjustments and repairs from anywhere.
- Multiple Operating Modes: Grid-Tied, Meter Zero, Time-of-Use, Smart Load, and Off-Grid modes available for various applications.
The Sol-Ark 12K Hybrid Solar Inverter is not just a smart investment; it is a reliable energy solution that empowers you to take control of your energy needs, whether off-grid or connected to the grid. With its innovative technology and excellent customer support, it is a top choice for anyone looking to enhance their energy efficiency.
Specifications & Dimension
Sol-Ark 12K-P Inverter
General:
Model: Sol-Ark-12K-P
SKU: 12K-2P
Design: Transformerless DC
Stackable: Up to 9 in parallel
Standard Warranty: 10 Years
Input Data (PV):
Max. Allowed PV Power (STC): 13,000W
Rated MPPT Operating Voltage Range: 175 – 425V
MPPT Voltage Range: 150 – 500V
Startup Voltage: 125V
Max. DC Input Voltage: 500V
Max. Operating Input Current per MPPT: 20A (self-limiting)
No. of MPP Trackers: 2
No. of PV Strings per MPPT: 2
Max. AC Coupled Input: 9,600W
Output Data (AC):
Nominal AC Voltage: 120/240V, 120/208V, 220V
Grid Frequency: 50 / 60Hz
Real Power (max continuous): 9,000W
Max. Output Current: 37.5A
Peak Apparent Power (10s, off-grid): 16,000VA @ 240V
Peak Apparent Power (100ms, off-grid): 25,000VA @ 240V
Max. Output Fault Current (100ms): 104A
Max. Grid Passthrough Current: 63A
Power Factor Output Range: +/- 0.9 adjustable
Backup Transfer Time: 4ms
CEC Efficiency: 96.5%
Max Efficiency: 97.5%
Battery Input (DC):
Supported Battery Technologies: Lithium / Lead Acid
Nominal DC Voltage: 48V
Operating Voltage Range: 43 – 63V
Battery Capacity Range: 50 – 9900Ah
Max. Battery Charge / Discharge Current: 185A
Charging Controller: 3-Stage with Equalization
Grid to Battery Charging Efficiency: 96.0%
External Battery Temperature Sensor (BTS): Included
Automatic Generator Start (AGS): 2 Wire Start - Integrated
BMS Communication: CANBus & RS485 MODBUS
Physical:
Dimensions (HxWxD): 750 x 450 x 254 mm (29.5 x 17.7 x 10 in)
Weight: 35.4 kg / 78 lb
Enclosure: IP65 / NEMA 3R
Ambient Temperature Range: -25°C to 55°C (derating > 45°C)
Noise Level: < 30 dB @ 25°C
Idle Consumption - No Load: 60W
Communication and Monitoring:
Wi-Fi & LAN: Hardware Included
Certifications & Protection:
Certifications: UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H
PV DC Disconnect Switch: NEC 240.15 - Integrated
Ground Fault Detection: NEC 690.5 - Integrated
PV Rapid Shutdown Control: NEC 690.12 - Integrated
PV Arc Fault Detection: NEC 690.11 - Integrated
PV Input Lightning Protection: Integrated
PV String Input Reverse Polarity Protection: Integrated
AC Output Breaker: 63A - Integrated
Battery Breaker / Disconnect: 250A - Integrated
Surge Protection: DC Type II / AC Type II
What's in the Box?
- Sol-Ark 12K Hybrid Solar Inverter Unit
- Pre-installed dual 500V charge controllers
- User Manual and quick start guide
- WiFi communication module for remote access
- Battery temp sensor and built-in disconnects
- Required mounting and wiring accessories
- Arc fault and ground fault protection integrated
