Amensolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter

Name: Amensolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter
Brand: Amensolar
SKU: AME-N3H-X16US
Price: 4000.0 USD
Availability: InStock

Sku: AME-N3H-X16US

$4,000.00

$5,120.00

-21%

Buy Now, Pay Later

Perfect Companions

Description

Power Your Life with Amensolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter

Reliable and Versatile Solar Energy Solution

The Amensolar N3H-X16US Hybrid Solar Inverter provides robust power with its 16KW inverter power capacity, supporting split-phase (110~120/220~240V) and 240V single phase outputs. With UL and CSA certifications, high efficiency, and advanced protections, it offers peace of mind to homeowners and businesses seeking clean, efficient energy.

Generation Eco Store Supports Your Sustainable Energy Journey

Choosing the N3H-X16US inverter from Generation Eco Store means entrusting your power needs to a brand that combines cutting-edge technology with seamless user experience, including remote monitoring. Our expertise helps you install, monitor, and optimize your solar setup for unmatched reliability and savings.

Experience Flexibility and Durability

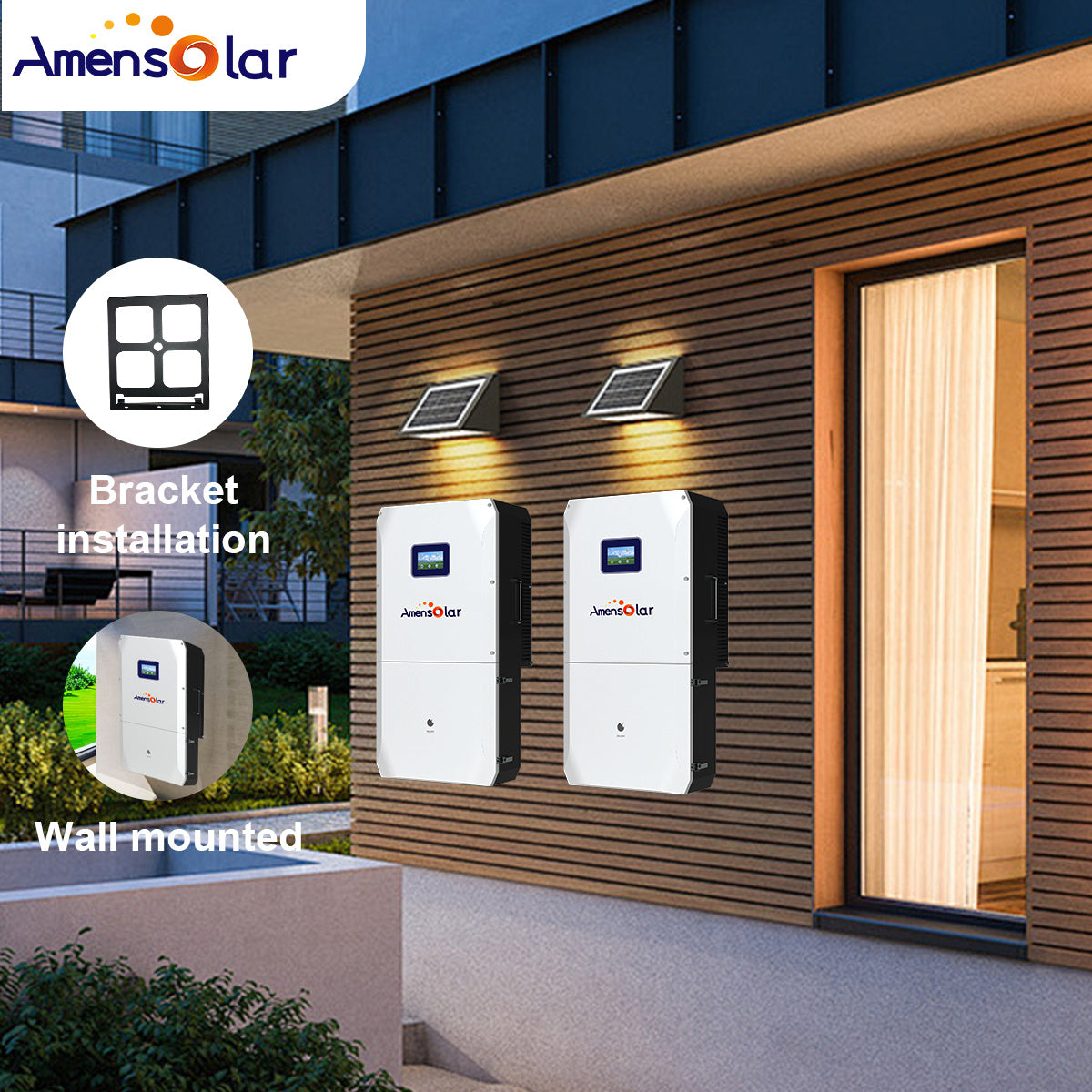

This IP65 rated inverter supports multiple parallel connections and a wide operating temperature range, built for outdoor installations. Its easy plug-and-play setup with built-in fuse protection ensures quick and safe deployment, making it ideal for diverse solar hybrid applications.

Key Specifications

Specification	Values
Brand	Amensolar
Model Number	N3H-X16US
Inverter Power	16KW
Max DC Input Power	24KW
Number of MPPT Trackers	4
Battery Voltage Range	40-58V
Ingress Protection	IP65/NEMA 3R
Weight	67 kg

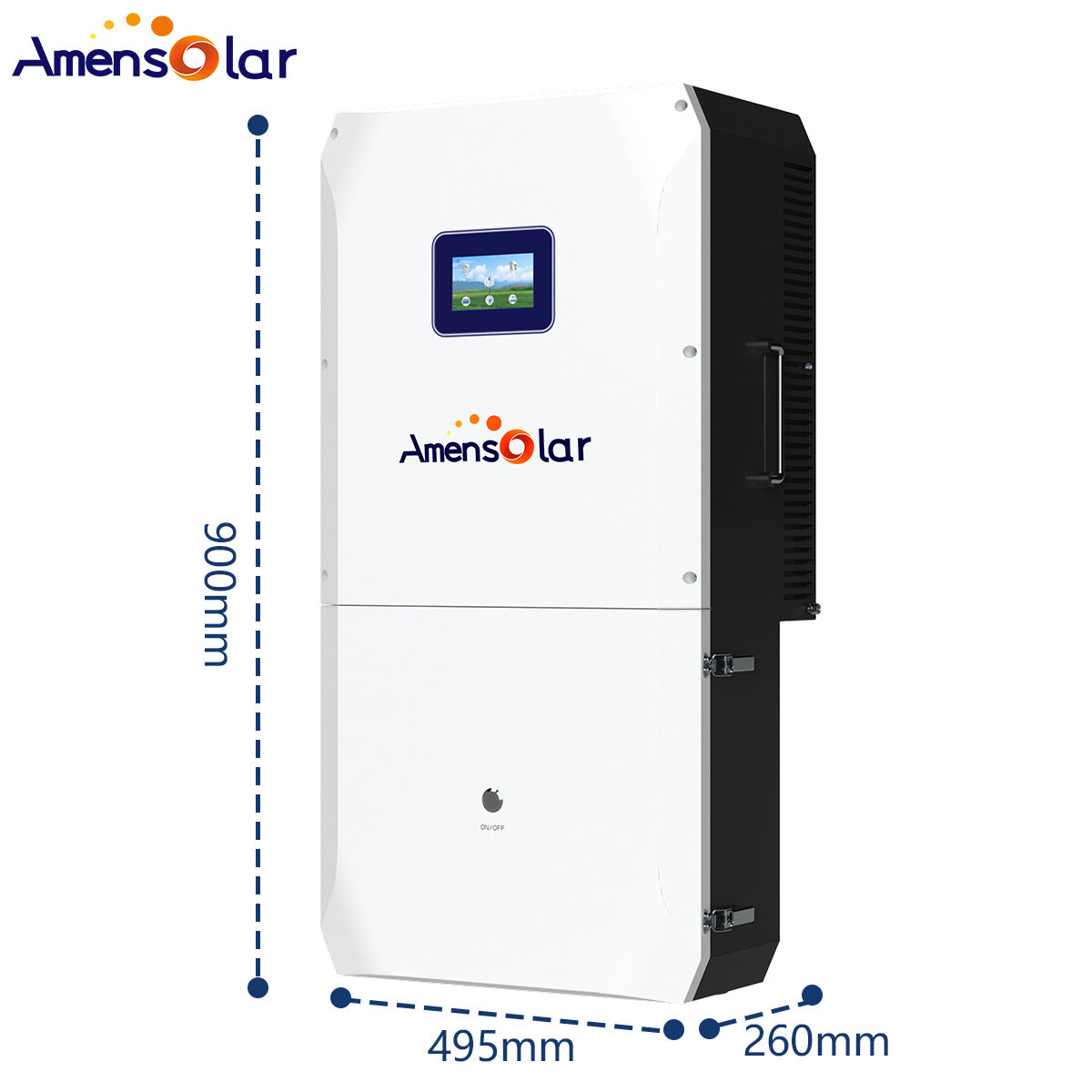

Specifications & Dimension

Model Model: N3H-X16US PV input Max DC input power (kW): 24 Number of MPPT trackers: 4 MPPT voltage range (V): 120~430 Max DC input voltage (V): 500 Max input current per MPPT (A): 20/20/20/20 Max short current per MPPT (A): 25/25/25/25 Battery input Nominal voltage (V): 48 Max charging current (A): 260 Max discharging current (A): 280 Battery voltage range (V): 40-58 Battery type: Lithium / Lead-acid Charging controller: 3-Stage with equalization AC output (on-grid) Nominal output power to grid (kVA): 16 Max apparent power output to grid (kVA): 17.6 Nominal AC voltage (L-N/L1-L2) (V): (110~120)/(220~240V) split phase, 240V single phase Nominal AC frequency (Hz): 60 Nominal AC current (A): 66.7 Max AC current (A): 73.7 Max grid passthrough current (A): 200 Output THDi: <3% AC output (back-up) Nominal apparent power (kVA): 13 Max apparent power (no PV) (kVA): 13.2 Max apparent power (with PV) (kVA): 17.6 Nominal output voltage (V): 120/240 Nominal output frequency (Hz): 60 Output power factor: 0.8 leading~0.8 lagging Output THDu: <2% Protection Ground detection: Yes Arc fault protection: Yes Island protection: Yes Insulation resistor detection: Yes Residual current monitoring unit: Yes Output over current protection: Yes Back-up output short protection: Yes Output over voltage protection: Yes Output under voltage protection: Yes General data MPPT efficiency: 99.9% Europe efficiency (PV): 96.2% Max PV to grid efficiency (PV): 96.5% Max battery to load efficiency: 94.6% Max PV to battery charging efficiency: 95.8% Max grid to battery charging efficiency: 94.5% Operating temperature range (°C): -25~+60 Relative humidity: 0-95% Operating altitude: 0~4000m (Derating above 2000m altitude) Ingress protection: IP65/NEMA 3R Weight (with breaker) (kg): 67 Dimensions W*H*D (mm): 495 x 900 x 260 Cooling: Air Cooling Noise emission (dB): 38 Display: LCD Communication with BMS/Meter/EMS: RS485, CAN Supported communication interface: RS485, 4G (optional), Wi-Fi Self-consumption: <25W Safety: UL1741, UL1741SA&SB all options, UL1699B, CSA-C22.2 NO.107.1-01, RSD(NEC690.5,11,12) EMC: FCC part 15 class B Grid connection standards: IEEE 1547, IEEE 2030.5, HECO Rule 14H, CA Rule 21 Phase I,II,III,CEC,CSIP,SRD2.0,SGIP,OGPe,NOM,California Prob65

What's in the Box?

N3H-X16US Hybrid Solar Inverter
User Manual
Installation Guide
Mounting Hardware

Guides & More

Spec Sheet

User Manual

Shipping Policy

Free & Fast Shipping
We offer free shipping on most Amensolar Hybrid Inverters orders across the lower 48 states, using the most reliable freight partners. Orders typically ship within 5 business days, with tracking provided within 24 hours of dispatch.
Tracking & Delivery Scheduling
You’ll receive an order confirmation email immediately after placing your order. Tracking details are usually shared within 3–5 business days. Please review your shipping address carefully—corrections after shipment may incur a fee.
Important Shipping Notes
Ensure your location can accommodate freight deliveries. Additional charges may apply for access-restricted areas, remote locations, or deliveries requiring special transport (e.g., ferry or plane).

See our full Shipping Policy here

Return Policy

Hassle-Free Returns
We offer a 30-day return window from the date you receive your item. Items must be unused, in original packaging, and accompanied by proof of purchase. Some items may incur a 15–25% restocking fee, especially larger freight-shipped products. Cancellations made before shipping will incur a 3-5% processing fee.
Damaged or Special Orders
Please report any damages within 24 hours of delivery. Installed or opened items may not be returnable. Select brands such as Victron and Pytes may be non-returnable based on manufacturer policies.

See our full Return Policy here

"What we'd tell a friend"

Powerful Hybrid Inverter

Delivering 16KW output power and supporting split phase voltage, the N3H-X16US efficiently manages solar, battery, and grid energy. Its high MPPT efficiency and multiple protections optimize your energy use while safeguarding your investment.

Durable & Weatherproof

With an IP65 rating and NEMA 3R certification, this inverter is built to withstand outdoor conditions. Its air cooling system and robust construction ensure longevity and reliable performance in various environments.

Robust Connectivity

Equipped with RS485, CAN, optional 4G, and Wi-Fi, the N3H-X16US allows remote monitoring and efficient communication with your energy management system. This feature gives you complete control and insight over your solar power system anytime, anywhere.

See it in Action

Have a Question? We Have Answers

What is the maximum number of inverters that can operate in parallel with the N3H-X16US?

The N3H-X16US supports up to 4 parallel inverters, enabling higher power capacity installations and scalability for growing energy needs.

What types of batteries are compatible with the N3H-X16US inverter?

This inverter supports both lithium and lead-acid batteries with a nominal voltage of 48V and a voltage range from 40 to 58 volts, giving flexibility in battery selection for different energy storage needs.

How does the Amensolar N3H-X16US handle grid outages?

The Amensolar N3H-X16US features backup power functionality with a nominal 13 kVA output, allowing it to provide power during grid outages. It supports backup output short protection and island protection to ensure safe operation.

What is the warranty on Hybrid Inverters?

Warranty for product varies based on the brand and the product. For some of the warranties, https://generationecostore.com/pages/warranty view OEM warranty policy. For any questions, please reach out to us at hello@generationecostore.com

Can I return the Hybrid Inverters if I'm not satisfied?

We offer a 30-day return window from the date you receive your item. To be eligible for a return, the item must be unused, in its original packaging, and include proof of purchase.
