Pylontech Force H1 High Voltage Battery Storage System
The Force H1 by Pylontech is a high-voltage battery storage system engineered for both performance and flexibility. With a sleek stacking design, this system supports configurations from 96V to 384V and capacities ranging from 7.1 kWh to 149.1 kWh, making it a scalable solution for various residential and commercial energy storage needs.
Designed for installer convenience, the Force H1 features a quick-connector interface that significantly reduces installation time. It is secured with self-developed lithium battery cells and an advanced Battery Management System (BMS), ensuring 95% depth of discharge (DOD) and more than a decade of proven technical reliability.
Whether used indoors or outdoors, this robust system delivers dependable energy storage with minimal maintenance and seamless expandability.
Specifications & Dimension
Force H1 - 7 Module Battery System
Configuration: Multi-group
Max Parallel Groups: 6
Battery Module: FL48074
Nominal Voltage: 48V DC
Battery Module Capacity: 3.55 kWh
Battery System Capacity: 24.86 kWh
Usable Capacity: 23.62 kWh
Dimensions (W x D x H): 23.62 × 14.96 × 54.33 in (600 × 380 × 1380 mm)
Weight: 586 lb (266 kg)
Depth of Discharge: 95%
Charge/Discharge Current (Normal): 100A
Charge/Discharge Current (Max): 110A @ 15s
Cycle Life: >8000 cycles @ 77°F (25℃)
Communication Port: RS485 / CAN
IP Rating: IP55
Working Temperature: 32°F – 131°F (0℃ – 55℃)
Storage Temperature: -4°F – 113°F (-20℃ – 45℃)
Humidity Range: 5% – 95% RH, No Condensation
Altitude Limit: <6561 ft (2000 m)
Design Life: 15+ Years @ 77°F (25℃)
Certifications: CE, IEC62477, IEC62619, UN38.3, VDE2510-50
UL9540 Certified Compatibility: Solis-S6-EHIP(3.8–11.4)K-H-US
Force H1 (2 Modules)
Battery Module: FH48074
Battery Module Voltage (VDC): 48
Battery Module Capacity (kWh): 3.55
Multi-group: Max. 6 groups in parallel
Communication: Modbus RTU / CAN
IP Rating: IP55
Working Temperature: 32131°F (055℃)
Storage Temperature: -4113°F (-2045℃)
Humidity (RH): 5%–95% No Condensation
Altitude: <6561 ft (2000 m)
Design Life: 15+ Years @77°F (25℃)
Cycle Life: >8000 cycles @77°F (25℃)
Certification: UL1973, VDE2510-50, IEC62619, IEC62477, IEC62040-1, CE, UN38.3
UL9540 Certified Compatibility: Solis-S6-EHIP(3.8-11.4)K-H-US
# Modules: 2
Battery System Voltage (V): 96
System Capacity (kWh): 7.1
Usable Capacity (kWh): 6.75
Weight (lb / kg): 190 lb / 86 kg
Charge/Discharge (A) Normal: 37
Charge/Discharge (A) Max: 42 @15S
Dimensions (in / mm): 23.62×14.96×20.57 in (600×380×530 mm)

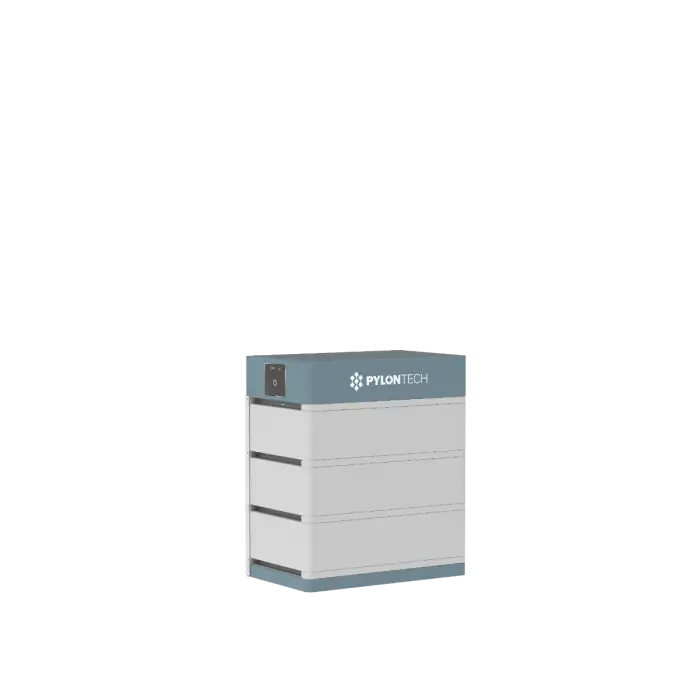

Force H1 (3 Modules)
Battery Module: FH48074
Battery Module Voltage (VDC): 48
Battery Module Capacity (kWh): 3.55
Multi-group: Max. 6 groups in parallel
Communication: Modbus RTU / CAN
IP Rating: IP55
Working Temperature: 32131°F (055℃)
Storage Temperature: -4113°F (-2045℃)
Humidity (RH): 5%–95% No Condensation
Altitude: <6561 ft (2000 m)
Design Life: 15+ Years @77°F (25℃)
Cycle Life: >8000 cycles @77°F (25℃)
Certification: UL1973, VDE2510-50, IEC62619, IEC62477, IEC62040-1, CE, UN38.3
UL9540 Certified Compatibility: Solis-S6-EHIP(3.8-11.4)K-H-US
# Modules: 3
Battery System Voltage (V): 144
System Capacity (kWh): 10.65
Usable Capacity (kWh): 10.12
Weight (lb / kg): 268 lb / 122 kg
Charge/Discharge (A) Normal: 37
Charge/Discharge (A) Max: 42 @15S
Dimensions (in / mm): 23.62×14.96×27.56 in (600×380×700 mm)

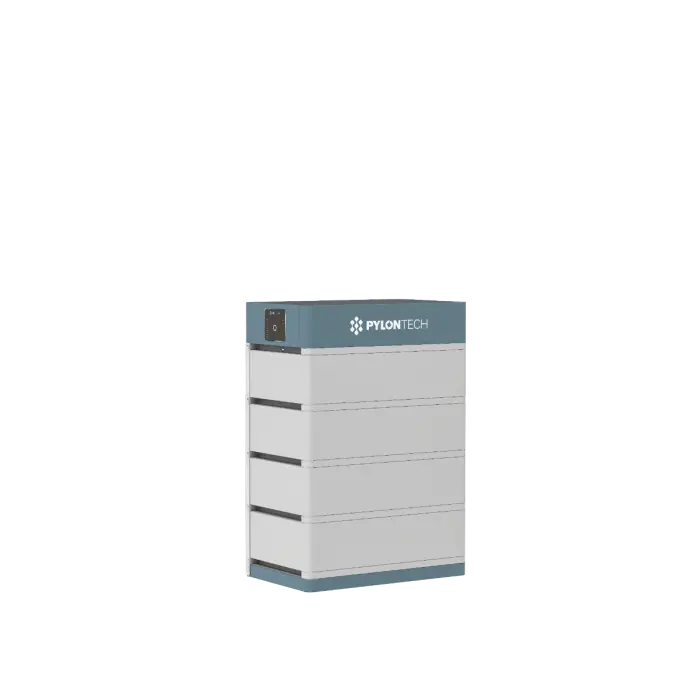

Force H1 (4 Modules)
Battery Module: FH48074
Battery Module Voltage (VDC): 48
Battery Module Capacity (kWh): 3.55
Multi-group: Max. 6 groups in parallel
Communication: Modbus RTU / CAN
IP Rating: IP55
Working Temperature: 32131°F (055℃)
Storage Temperature: -4113°F (-2045℃)
Humidity (RH): 5%–95% No Condensation
Altitude: <6561 ft (2000 m)
Design Life: 15+ Years @77°F (25℃)
Cycle Life: >8000 cycles @77°F (25℃)
Certification: UL1973, VDE2510-50, IEC62619, IEC62477, IEC62040-1, CE, UN38.3
UL9540 Certified Compatibility: Solis-S6-EHIP(3.8-11.4)K-H-US
# Modules: 4
Battery System Voltage (V): 192
System Capacity (kWh): 14.21
Usable Capacity (kWh): 13.5
Weight (lb / kg): 348 lb / 158 kg
Charge/Discharge (A) Normal: 37
Charge/Discharge (A) Max: 42 @15S
Dimensions (in / mm): 23.62×14.96×34.25 in (600×380×870 mm)

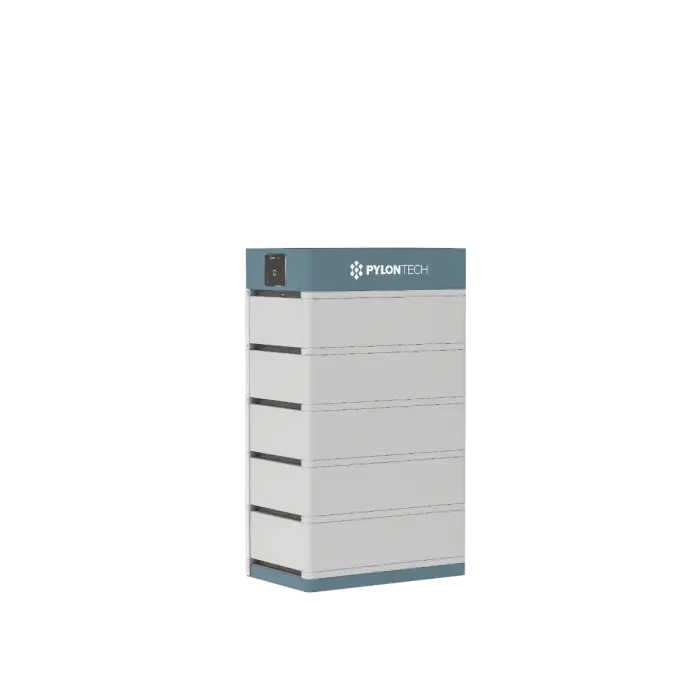

Force H1 (5 Modules)
Battery Module: FH48074
Battery Module Voltage (VDC): 48
Battery Module Capacity (kWh): 3.55
Multi-group: Max. 6 groups in parallel
Communication: Modbus RTU / CAN
IP Rating: IP55
Working Temperature: 32131°F (055℃)
Storage Temperature: -4113°F (-2045℃)
Humidity (RH): 5%–95% No Condensation
Altitude: <6561 ft (2000 m)
Design Life: 15+ Years @77°F (25℃)
Cycle Life: >8000 cycles @77°F (25℃)
Certification: UL1973, VDE2510-50, IEC62619, IEC62477, IEC62040-1, CE, UN38.3
UL9540 Certified Compatibility: Solis-S6-EHIP(3.8-11.4)K-H-US
# Modules: 5
Battery System Voltage (V): 240
System Capacity (kWh): 17.76
Usable Capacity (kWh): 16.87
Weight (lb / kg): 427 lb / 194 kg
Charge/Discharge (A) Normal: 37
Charge/Discharge (A) Max: 42 @15S
Dimensions (in / mm): 23.62×14.96×40.94 in (600×380×1040 mm)

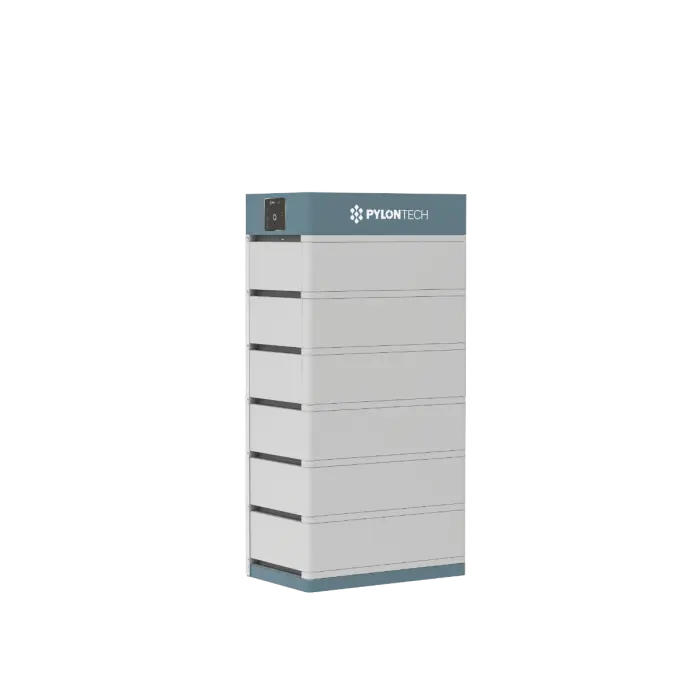

Force H1 (6 Modules)
Battery Module: FH48074
Battery Module Voltage (VDC): 48
Battery Module Capacity (kWh): 3.55
Multi-group: Max. 6 groups in parallel
Communication: Modbus RTU / CAN
IP Rating: IP55
Working Temperature: 32131°F (055℃)
Storage Temperature: -4113°F (-2045℃)
Humidity (RH): 5%–95% No Condensation
Altitude: <6561 ft (2000 m)
Design Life: 15+ Years @77°F (25℃)
Cycle Life: >8000 cycles @77°F (25℃)
Certification: UL1973, VDE2510-50, IEC62619, IEC62477, IEC62040-1, CE, UN38.3
UL9540 Certified Compatibility: Solis-S6-EHIP(3.8-11.4)K-H-US
# Modules: 6
Battery System Voltage (V): 288
System Capacity (kWh): 21.31
Usable Capacity (kWh): 20.24
Weight (lb / kg): 507 lb / 230 kg
Charge/Discharge (A) Normal: 37
Charge/Discharge (A) Max: 42 @15S
Dimensions (in / mm): 23.62×14.96×47.68 in (600×380×1210 mm)

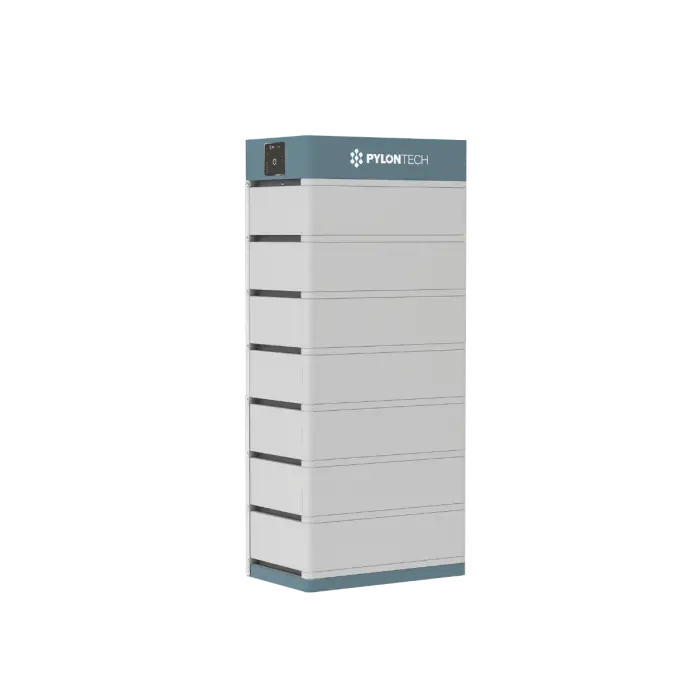

Force H1 (7 Modules)
Battery Module: FH48074
Battery Module Voltage (VDC): 48
Battery Module Capacity (kWh): 3.55
Multi-group: Max. 6 groups in parallel
Communication: Modbus RTU / CAN
IP Rating: IP55
Working Temperature: 32131°F (055℃)
Storage Temperature: -4113°F (-2045℃)
Humidity (RH): 5%–95% No Condensation
Altitude: <6561 ft (2000 m)
Design Life: 15+ Years @77°F (25℃)
Cycle Life: >8000 cycles @77°F (25℃)
Certification: UL1973, VDE2510-50, IEC62619, IEC62477, IEC62040-1, CE, UN38.3
UL9540 Certified Compatibility: Solis-S6-EHIP(3.8-11.4)K-H-US
# Modules: 7
Battery System Voltage (V): 336
System Capacity (kWh): 24.86
Usable Capacity (kWh): 23.62
Weight (lb / kg): 586 lb / 266 kg
Charge/Discharge (A) Normal: 37
Charge/Discharge (A) Max: 42 @15S
Dimensions (in / mm): 23.62×14.96×54.33 in (600×380×1380 mm)
What's in the Box?

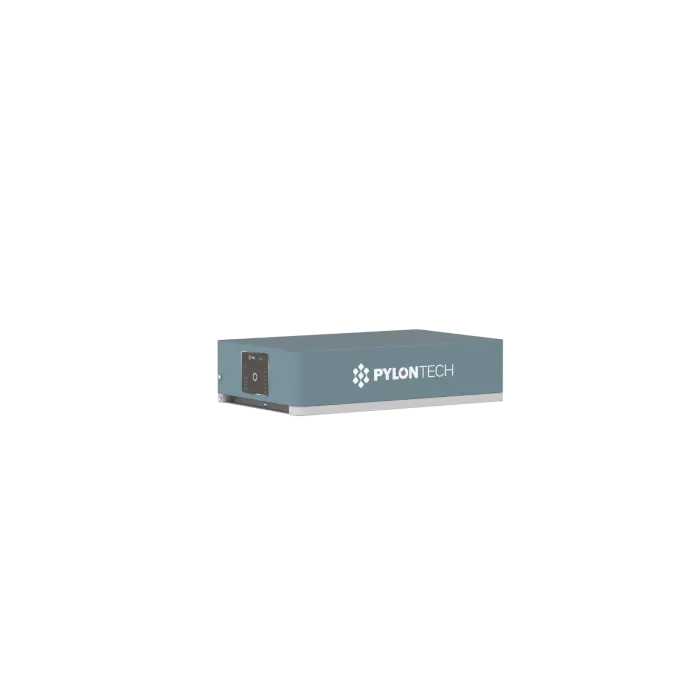

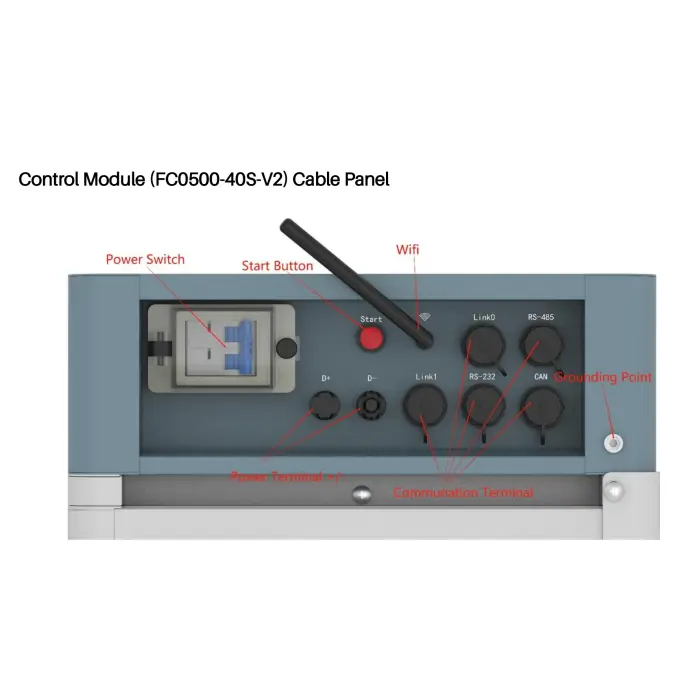

- 1 × FC0500-40S-V2 Battery Controller
- 1 × Force-H1 Basement (600×380×40 mm)
- 3 × EPE Foam
- 2 × 3M Black External Communication Cables (RJ45)
- 1 × 3M DC+ Red External Power Cable (8 AWG)
- 1 × 3M DC– Black External Power Cable (8 AWG)
- 1 × 1M Yellow-Green Grounding Cable (10 AWG)
- 20 × M4 Screws for Fixing Brackets
- 4 × M8 Bolts for Fixing Basement
- 2 × 571.5mm Brackets (for up to 3 modules)
- 2 × 701.5mm Brackets (for up to 7 modules when combined with above)
- 1 × Product Manual
- 1 × Warranty Card
- 1 × 1.5M Black Internal Communication Cable (RJ45)
- 1 × FH48074 Battery Module
- 2 × EPE Foam
FC0500-40S-V2 Battery Controller Package
Per FH48074 Battery Module Package
Guides & More
Shipping Policy
- Free & Fast Shipping
We offer free shipping on most Pylontech Home Battery Backup orders across the lower 48 states, using the most reliable freight partners. Orders typically ship within 5 business days, with tracking provided within 24 hours of dispatch. - Tracking & Delivery Scheduling
You’ll receive an order confirmation email immediately after placing your order. Tracking details are usually shared within 3–5 business days. Please review your shipping address carefully—corrections after shipment may incur a fee. - Important Shipping Notes
Ensure your location can accommodate freight deliveries. Additional charges may apply for access-restricted areas, remote locations, or deliveries requiring special transport (e.g., ferry or plane).
See our full Shipping Policy here
Return Policy
- Hassle-Free Returns
We offer a 30-day return window from the date you receive your item. Items must be unused, in original packaging, and accompanied by proof of purchase. Some items may incur a 15–25% restocking fee, especially larger freight-shipped products. Cancellations made before shipping will incur a 3-5% processing fee. - Damaged or Special Orders
Please report any damages within 24 hours of delivery. Installed or opened items may not be returnable. Select brands such as Victron and Pytes may be non-returnable based on manufacturer policies.
See our full Return Policy here
"What we'd tell a friend"
-
Modular and Scalable Design
-
With stackable modules and voltage range from 96V to 384V, the Force H1 allows capacity expansion from 7.1kWh up to 149.1kWh, making it ideal for varied system sizes.
-
Fast Installation & Compact Build
-
Built-in quick connectors and tool-free stacking significantly reduce installation time and complexity, making it ideal for both pros and DIYers.
-
Proven Durability & High Efficiency
-
Backed by 10+ years of technical expertise and 95% Depth of Discharge (DOD), this system ensures long-lasting performance and maximum usable capacity.
See it in Action
Have a Question? We Have Answers
How many Force H1 modules can I stack?
-
You can stack from 2 to 7 battery modules depending on your desired voltage and capacity. Up to 149.1kWh can be achieved by combining multiple towers.
Is the Pylontech Force H1 system outdoor rated?
-
Yes, the Force H1 is suitable for both indoor and outdoor installations, but it should be sheltered from direct sunlight and rain for optimal lifespan.
